    IEC 60601-1 Human Body Weight Dynamic And Static Load Testing Machine For Medical Bed Test

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNM06
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 60601-1 Human Body Weight Dynamic And Static Load Testing Machine For Medical Bed Test


    IEC 60601-1 Human Body Weight Dynamic And Static Load Testing Machine For Medical Bed Test


    Product Information:


    1. Standard: conform to IEC60601-1:2012, YY9706.252-2021 clause 201.9.8.3.2 and 2019.8.3.3, IEC60601-2-52:2009

    2. Samples and restrictions: the medical bed.

    3. Application: it is suitable for testing and verifying the durability, safety and reliability of medical beds by simulating the dynamic and static loads of the human body.

    4. Test principle: The servo motor drives the manipulator to perform static load testing and dynamic load fatigue testing on medical beds.

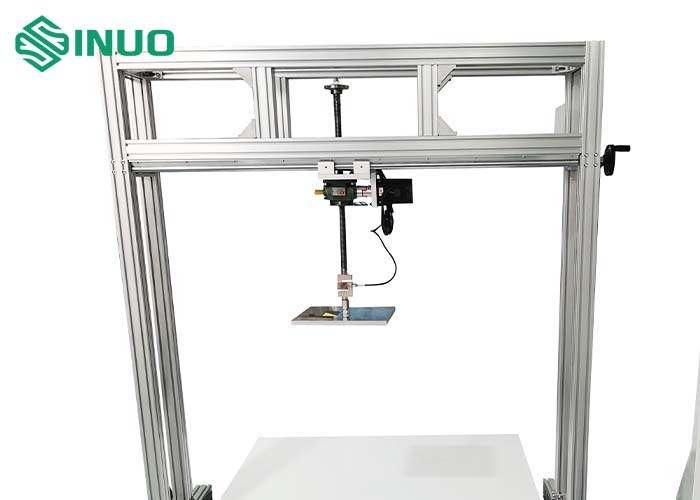

    5. Equipment structure and characteristics: The device consists of an extended work surface, top-loading robotic arm, all-steel frame and electrical control cabinet;

    The test bench uses PLC intelligent central integrated control, touch screen display and operation. It is driven by a servo motor to apply a certain force value to the top of the sample for a certain period of time according to standard requirements to verify its mechanical strength. The number of reciprocations can be preset. Parameters such as test force value, constant force time, and number of tests can be set through the touch screen interface. Pressure is automatically applied on the top to match specimens of various specifications, and the test process can be fully automated.


    Technical Parameters:


    Usage environmentPower supply: AC220V±10%/50-60Hz, power 3.0KW
    StationSingle station, can be customized
    Electrical control methodPLC intelligent integrated control, color human-machine touch interface operation
    Test size rangeNot larger than WDH=120cm*200cm*130cm
    Specimen clamping methodMechanical clamping
    Test items and action processes

    1. Human body static load test (201.9.8.3.2): loading force value 0-4000N, constant force time: 0-9999min

    2. Human body dynamic load test (201.9.8.3.3.1): loading force value 1350N, number of tests: 10,000 times

    Drive modeServo motor + precision reducer drive
    Applied force value range0-4000N, configurable, real-time detection and display of force sensor
    Force application speed0-300mm/min
    Constant force time0-9999s can be set
    Test frequency0~999999 times can be preset
    FrameAluminum profile frame, suitable for fixing different specimens
    Pressure plateStandard 0.1m² piece, the connector is M20 threaded, and the pressure plate can be switched for use
    Safety protectionOverload protection, leakage protection
    Equipment dimensionsAbout: 4000×1800×2150 (mm) W×D×H
    Equipment weight400kg

    IEC 60601-1 Human Body Weight Dynamic And Static Load Testing Machine For Medical Bed Test
