    BS 1363-1 Pressure Test At High Temperature Test Apparatus For Heat Resistance Testing

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2141
    Certification : Calibration Certificate(cost additional )
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50 Sets / Month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

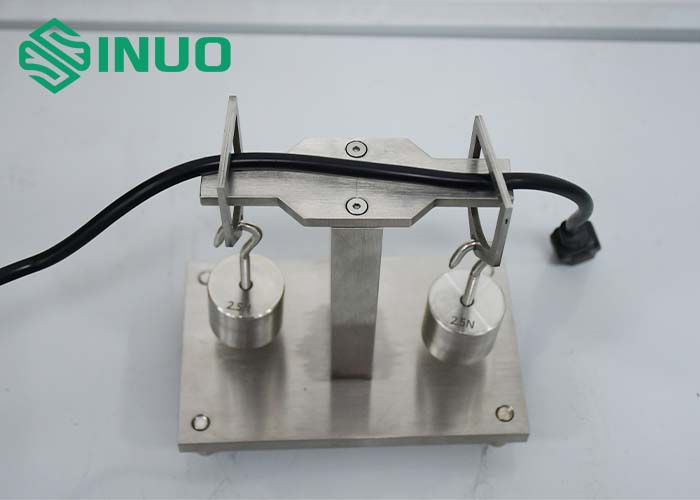

    BS 1363-1 Pressure Test At High Temperature Test Apparatus For Heat Resistance Testing


    BS 1363-1 Pressure Test At High Temperature Test Apparatus For Heat Resistance Testing


    Product information:


    Standard: IEC 60884-1: 2022 clause 30.2 figure 44, IEC60598-2-20 clause20.15, IEN60811-3-1, VDE0620, BS1363, etc.

    Application: is used to test the heat resistance of the insulation material.

    Test sample: Plug and switch power cords, electrical cable and wires

    Feature: It has a rectangular blade (see figure 41a) with an edge 0,7 mm wide, to be used in the case of round pins, or a blade having a round shape (see figure 41b), with a diameter of 6 mm and an edge of 0,7 mm, in other cases. The specimens are placed in position of the apparatus.



    Technical Parameters:


    ItemParameters
    ModelSN2141
    StandardIEC60884 clause 30.1 figure 41
    Weights

    2.5N*2(it can be customized)

    Station2 station
    Edge Thickness0.7±0.01mm
    Operationmanual
    Test time2 hours
    MaterialStainless Steel
    Using temperatureIn a heating cabinet at a temperature of (200 ± 5) °C

    Test process:


    The force applied through the blade is 2,5 N.
    The apparatus, with the specimen in position, is maintained for 2 h in a heating cabinet at a temperature of (200 ± 5) °C.
    The specimen is then removed from the apparatus and, within 10 s, cooled by immersion in cold water.
    The thickness of the insulation remaining at the point of impression is measured and shall not have been reduced by more than 50 % of its original value measured at the start of the test.
