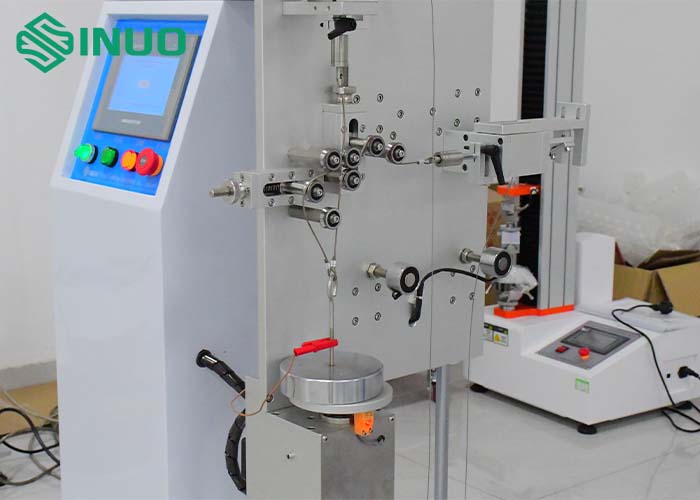

IEC 61851-1 Cable Anchorage Pull Force And Torque Test Apparatus For EV Charging Station Testing

Product information:

It is designed and manufactured according to IEC 61851-1:2017 clause 11.6.

Technical parameters:

Test content	Supply plug and/or vehicle plug cable of EV charging station tension test and torque test
Equipment structure schematic diagram	Refer Schematic
Control operation mode	PLC automatic control, touch screen operation
Drive mode	Electric
Pull apply	Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Torque apply	Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Torque wheel	R100mm(Ф200mm) ±0.5mm
Tensile frequency	1 time/s, the actual pull time is detected by electrical signal
Pull cycles	1-999999 cycles, can be preset, default is 100±1 cycles
Torque application time	0-99H59M59S,can be preset
Power failure protection	With power-off data storage memory function
Fixture	Universal clamp, one set

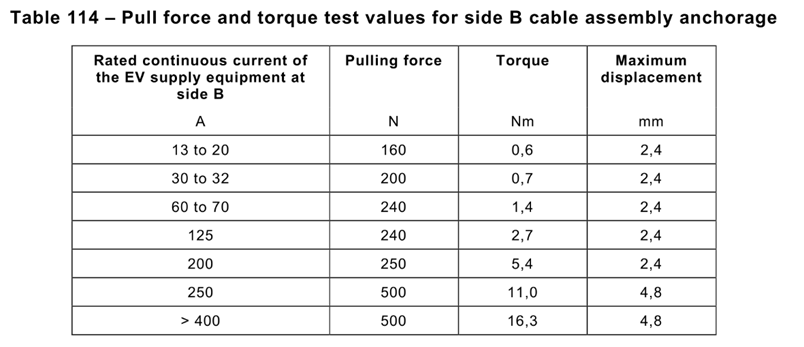

Weight matching selection table
