    IEC 60598-1 Electro-Mechanical Contact Test System With Load Cabinet For Lamp Live Test

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN9914
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 30 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60598-1 Electro-Mechanical Contact Test System With Load Cabinet For Lamp Live Test


    IEC 60598-1 Electro-Mechanical Contact Test System With Load Cabinet For Lamp Live Test


    Product Information:

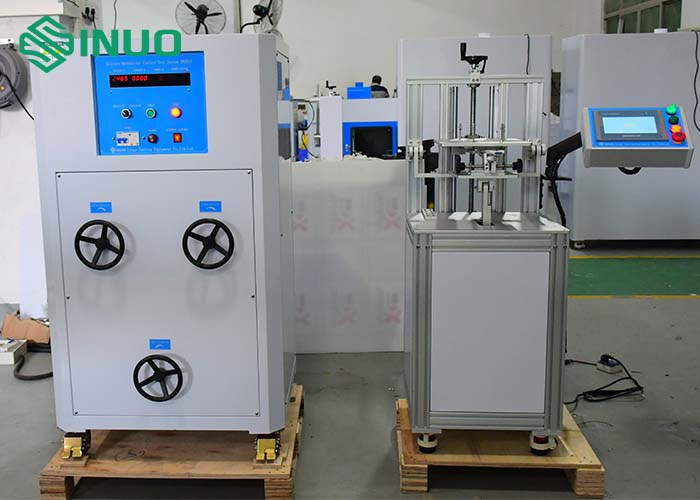

    The tester is designed and manufactured according to the standard requirements of IEC60598-1 clause 4.11.6 and figure 31. The test machine is connected to the power load cabinet during the test, and the live test is performed. After the mechanical number test is completed, the voltage drop test can be directly switched. Can set the number of on/off times, test voltage, current and load power factors, etc.



    Technical Parameters:


    1. Working power supply: AC 230V /2A/60Hz;

    2. Gas source: 6 ~ 8gk / cm2;

    3. On time: 0~99.9 seconds (minutes) adjustable;

    4. Test on-off mode: with intelligent control system, can be connected to the load separately, segmented control;

    5. It can realize two ways of electrical opening and closing and mechanical opening and closing;

    6. Intelligent discriminating function: When the sample is glued, continuous on or off occurs, it can alarm when the number of times is set;

    7. Test cycle time: adjustable from 0 to 99 seconds;

    8. Counter: 0~9999 times can be preset;

    9. Work station: single station;

    10. Load output mode: resistive + inductive load;

    11. Load output current: AC 5 ~ 30A continuously adjustable;

    12. Load output voltage: AC 0 ~ 250V continuously adjustable;

    13. Power factor: 0.3~1.0 continuously adjustable;

    14. Accuracy: V: 0.5, I: 0.5, COSΦ: 0.03;

    15. Counter: 0~99999 times can be preset;

    16. Machine size: 950 × 1200 × 1850mm (W * D * H).
