IEC 60670-1 Embedded Mounting Box Firmness Testing Device Enclosures Classified Test

Product information:

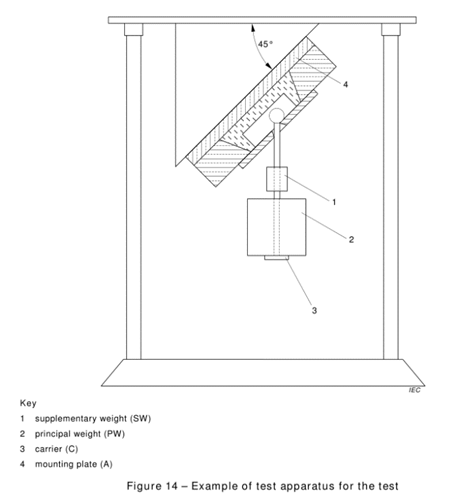

Standard: The device is designed and manufactured according to the standard requirements of IEC60670-1 Clause 12.11, figure 12, 13, 14.

Sample: Concealed and semi-concealed mounting boxes and enclosures classified according to IEC60670-1 Section 7.2.1.

Test purpose and principle: Concealed or semi-concealed mounting boxes or housings on solid walls, ceilings and floors, after being correctly installed according to the manufacturer's instructions. And the built-in fixing device should ensure that the sample can be correctly installed on the wall, ceiling and floor, and should be able to ensure normal use without displacement or falling off.

This test simulates the normal mounting of the mounting box, and the main weight is used to apply a force of (72±0.1)N in the vertical direction. And the additional weight (8±0.1)N is dropped from a height of 50mm to the main weight 10 times. After the test, the displacement of the mounting box on the mounting plate shall not exceed 0.5mm, so as to verify the firmness of the fixing device of the mounting box.

Equipment Structure and Features:

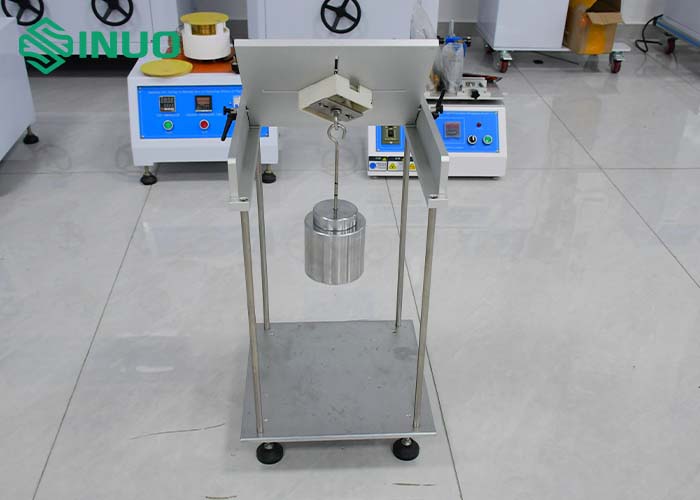

The device consists of a mounting top plate, an angle adjustment mechanism, a main weight F, an additional weight G, a mounting box and an auxiliary fixing device. The accessory weight is 1/10 of the total weight.

Equipment dimensions: Approximately: 350×350×600 (mm) W×D×H, Equipment weight: 25kg

Technical parameters:

Test station	Single

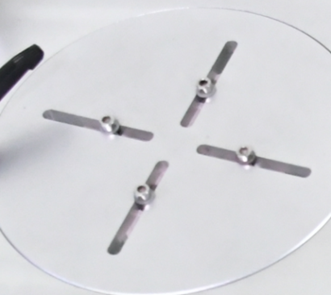

Mounting top plate	With long slots for cross-shaped mounting screws, the mounting plate can be fixed to the sample. The adjustable angle is 45°, as shown below.
Weight configuration	Main weight: 72±0.1N x1; Additional weight: 8±0.1N x1; Note: The weight of the main weight includes the corresponding hook weight

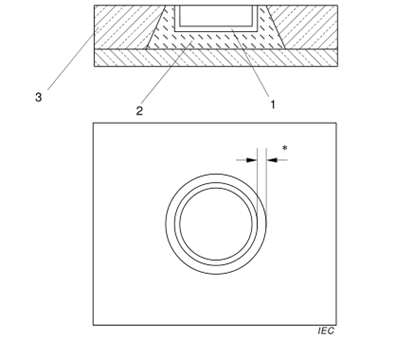

Mounting box	It can be used to mount embedded concealed or semi-concealed mounting boxes. According to the standard size requirements, there should be at least 20mm gap from all sides of the sample. Standard mounting box according to customer sample size
Fixing fixture	One set, used to lock the fixing fixture on the sample mounting hole
