4 In 1 Integrated IPX3 To IPX6 Waterproof Test Chamber IEC 60529
Figure 4 And Figure 6
Product Information
Application Background: The destruction of products and materials
by natural water (rain, sea, river, etc.) causes an incalculable
economic loss every year. The damages caused mainly include
corrosion, fading, deformation, strength drop, expansion, mildew,
etc., especially electrical products are easily broken into fires
due to short circuits caused by rain. Therefore, enclosure
protection water testing for specific products or materials is an
essential and critical process.
General application areas: outdoor lighting, household appliances,
auto parts and other electronic and electrical products.

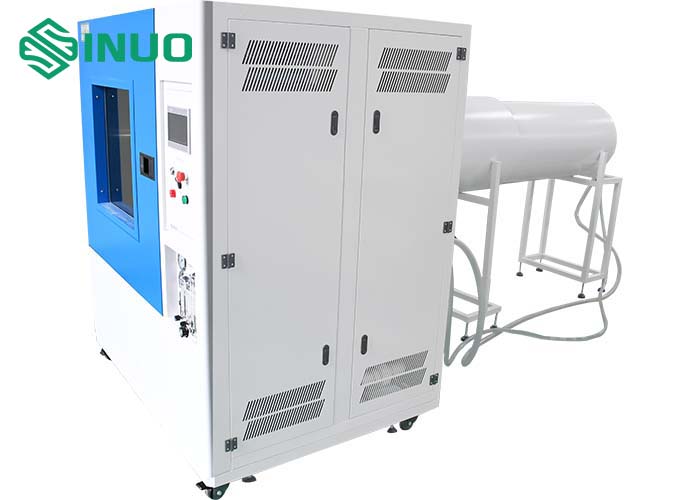

Equipment function: The main function of the equipment is to test
the physical and other related properties of electronic and
electrical products, lamps, electric cabinets, electrical
components, automobiles, motorcycles and their parts and components
under simulated climatic conditions. After the test, judge whether
the performance of the product meets the requirements by the
verification, so as to facilitate the design, improvement,
verification and factory inspection of the product.
Standard: IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection
provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.
Features
1.Suitable for product IPX3, IPX4, IPX5, IPX6 waterproof rating
test.
2. The outer casing is made of domestic high-quality steel plate,
and the surface is painted with baking varnish, which is beautiful
and durable.
3.The inner chamber and turntable are all made of SUS304# stainless
steel plate to ensure long-term use without rust.
4. There is a transparent observation window on the door, and LED
lighting inside of the chamber, easy for operator to observe the
internal test.

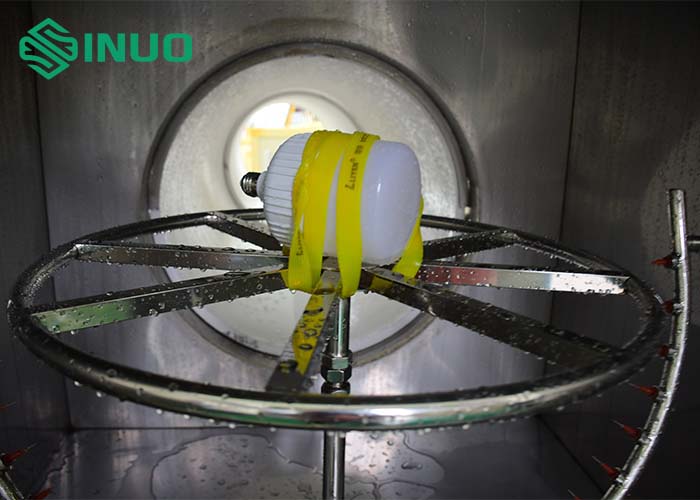

5. IPX34: Configured R200mm and R400mm oscillating tubes according to the specifications of IEC60529 figure 4 (as shown
below)
6. IPX56: Configured a spray nozzle according to the specifications
of IEC60529 figure 6 (as shown below):
Technical parameters:
| Technical Parameters | Basic Parameters |
| Inner Chamber Size | L1000*W1000*H1000mm |
| Outer Chamber Size | L1480*W3800*H1800mm |
| Turntable Diameter | ￠400mm |
| Turntable Maximum Load Bearing | 10KG |
| Turntable Speed | 1-5r/min (adjustable) |
| Turntable Rotation Method | Always positive / positive and negative alternate |
| Flow Adjustment Method | Manually adjust flow by adjusting flow meter on the panel |
| Test Time | 0-999 min |
| Power supply for sample | Configured with a waterproof socket inside the chamber for client
to power on sample during test
|
| Equipment dimensions | Approx.2770mm(L)*1330mm(W)*1750mm(H) |
| Total Weight | Approx. 350kg |
| Required site place | 3.2m(L)*2m(W)*2m(H) |
| IPX34 Oscillating Tubes Parameters |
| Oscillation Tube | R200 mm and R400mm |
| Distance between Nozzle Sample | Within 200mm |
| Spray Aperture Spacing | 50 mm |
| Oscillating Tube Swing Angle | ±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to
there is turntable under oscillating tube during test, so 360° can
not achieved during actual testing, if without turntable, then 360°
can be achieved) |
| Angle Between Two Holes | 120°(IP3) 180°(IP4) |
| Needle Hole | φ0 .4 mm |
| Oscillating Speed | IPX3: 15times/min; IPX4: 5times/min |
| Water Flow of Each Hole | 0.07 L/min +5% |
| Spray Pressure | 80-150Kpa |
| IPX56 Jet Nozzle Parameters |
| IPX5 Nozzle Jet Aperture | 6.3mm |
| IPX6 Nozzle Jet Aperture | 12.5mm |
| IPX5Jet Flow | 12.5±0.625 |
| IPX6 Jet Flow | 100±5L/min |
| Water Pressure (Mpa) | Adjusted according to the specified water flow |
| Jet Distance | 2.5M (nozzle away from the center of the turntable) |
| Nozzle Fixed Method | Mechanical fixing |
| Electrical Parameters |
| Power Supply for Equipment | 380V, 50Hz |
| Equipment Power | 3.0KW |
| Safety Protection Function | Leakage protection, water shortage protection, short circuit protection |
| Conditions of Use | The following conditions are guaranteed by the user and the
corresponding connection is completed. |
| Use of Space | The ground is level, the drainage is smooth, floor and wall are
waterproofing, Ground bearing capacity is not less than 200kg/㎡ Well ventilated No strong vibration around the device No strong electromagnetic field around the device No flammable, explosive, corrosive substances and dust around the
equipment Appropriate use and maintenance space is left around the equipment: Rear side, left and right side, top of the equipment: 800mm; front
side of equipment: 1400mm |
| Environmental Conditions | Temperature:5℃～35℃ Relative humidity: ≤85% Air pressure:86kPa～106kPa |
| Power Supply Conditions | |
| Voltage, Frequency | AC380V±10%; 50Hz±10%; three-phase four-wire + protective ground
wire |
| Power | 3.0kW |
| Protective Grounding Resistance | Grounding resistance of protective grounding wire is less than 4Ω |
| Power Switch | 1. The user is required to configure the leakage protection air
switch of the corresponding capacity for the equipment at the
installation site, and the switch must be used independently for
the device. 2. It is forbidden to use the knife switch or power socket. 3. The leakage protection air switch is not more than 2 meters away
from the equipment. |
| Water Source | 1. The user is required to configure the water source for the
equipment at the installation site, the water pressure is not less
than 0.2Mpa, and the 4-point faucet is installed. 2. The position of the faucet is no more than 2 meters away from
the equipment. |
