    IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test


    IEC 60598-1 Clause 4.14.1 Test E Spring Clamp Luminaires Test Device For Luminaires Test


    Product information:

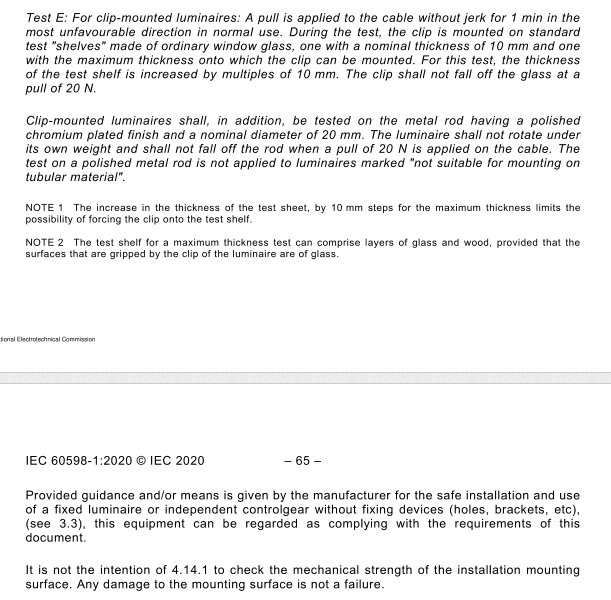

    Standard: IEC60598-1:2020 "Luminaries-Part1: General requirements and tests" clause 4.14.1 test E


    Specimen and limitations: Spring clamp mounted luminaires


    Test purpose: Used to test the clamping strength of spring clamp-mounted luminaires to verify the safety of the clamping connection


    Test principle:


    In this test, a push-pull force meter installed on the rack is used to apply tension to the cable in the most unfavorable direction during normal use of the spring-clamped lamp, which lasts for 1 minute.


    Technical parameters:


    Test stationSingle station
    Operation modeManually adjust the rocker of the push-pull force meter until the force value is constant for 1 minute, and then release it.
    Push-pull force meter range0-100N, resolution 0.01N
    Installation glass thickness

    Standard test shelf: A piece of ordinary glass plate with a thickness of 10mm.

    Another glass plate with a thickness that the spring clip can be installed on it, and the thickness increases in multiples of 10mm.

    Test metal rod1 piece, Ø20mm, polished chrome plated surface
    Test method

    Under a pulling force of 20N, the spring clip should not move on the glass.

    Under a pulling force of 20N, the spring clamped luminaire should not fall off the metal rod.
