    IEC 60335-1 Clause 22.48 Anti-Inverted Siphon Test Device For Anti-Siphonage Performance Test

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1111
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60335-1 Clause 22.48 Anti-Inverted Siphon Test Device For Anti-Siphonage Performance Test


    IEC 60335-1 Clause 22.48 Anti-Inverted Siphon Test Device For Anti-Siphonage Performance Test


    Product overview:


    This Anti-inverted siphon test device meets the requirements of IEC 60335-1 clause 22.48. It is used for anti-siphonage performance test of water inlet valves for appliances (such as washing machines) intended to be connected to the water mains for household and similar purposes.

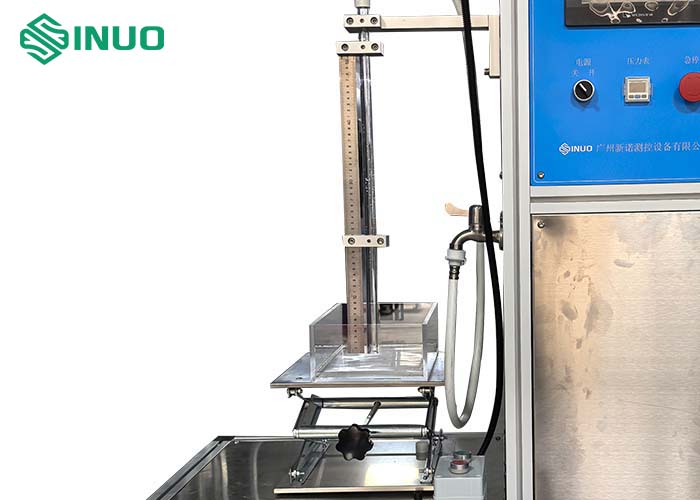

    The vacuum system of the equipment simulates the vacuum condition of the water supply pipeline to detect whether siphoning occurs in the inlet valve. There is a transparent container between the sample and the vacuum pump of the equipment, designed to collect water drawn in during a failed siphon test to protect the vacuum pump from damage. The vacuum system of the equipment simulates the vacuum condition of the water supply pipeline to detect whether siphoning occurs in the inlet valve.


    Technical Parameters:

    StationSingle
    Electrical control methodPLC intelligent integrated control, 7-inch human-machine touch interface operation
    Drive modeVacuum pump drive
    Vacuum generation methodVane vacuum pump. Maximum vacuum degree of the system: not less than 0.085Mpa. The vacuum degree is displayed by a pressure gauge with an accuracy of at least ±0.017. Operation time setting: 0-9999s, resolution 0.1s (adjustable)
    Vacuum tank capacity20L
    Inlet/outlet/drain

    1/2”

    IEC 60335-1 Clause 22.48 Anti-Inverted Siphon Test Device For Anti-Siphonage Performance Test
