    Appendix F Of TÜV Rheinland 2Pfg 2577/08.16 Robot Cable Bending Testing Machine


    Appendix F of TÜV Rheinland 2Pfg 2577/08.16 Robot Cable Bending Testing Machine


    Product Information:


    Standard: Appendix F of TÜV Rheinland 2Pfg2577/08.16 "Requirements for cables used in robot system"


    Specimen and limitations: Industrial robot cables.


    Test purpose: Used to test the bending resistance of the power cord of industrial robot cables when entering the joint.

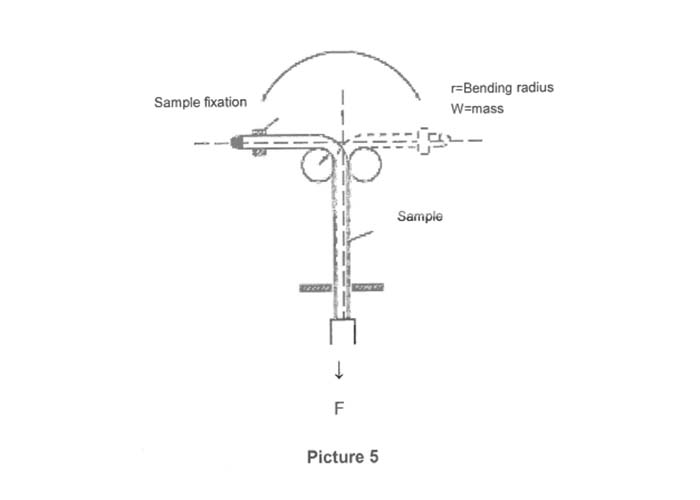

    Test principle: Using PLC control and servo motor drive, the bending test of industrial robot cables is carried out, and a certain load force is applied to the free end of the sample. The test speed, angle and number of tests can be preset through the touch screen.

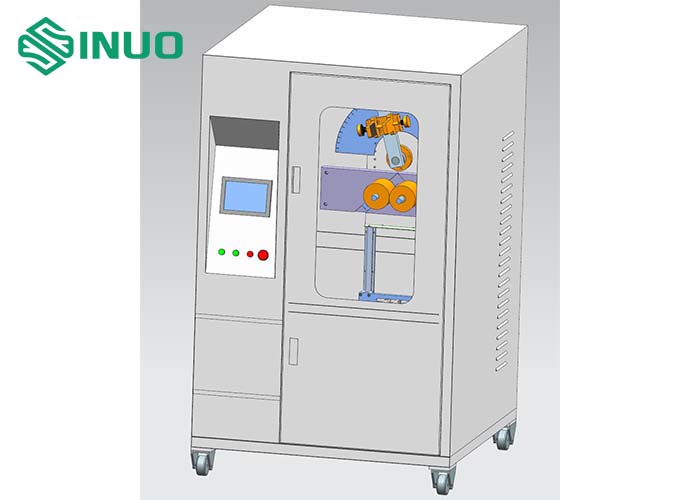

    Equipment structure and features: Chamber-type operating structure, strong versatility. The equipment is driven by a servo motor, with a centrally installed clamp, and the up and down eccentricity is adjustable. When clamping the sample, the swing axis and the point where the soft wire enters the instrument can be coincident as much as possible, thereby achieving the minimum lateral displacement of the cord and load.


    Technical Parameters:


    Control systemPLC control, 7-inch color touch screen operation
    Drive modeServo motor + precision reducer transmission mechanism
    StationSingle station, customizable 6 stations
    Test itemsBending test
    Main technical parameters of bending test
    SampleIndustrial robot cable Φ1.0 ~ Ф40mm
    Sample clamping method

    Mechanically clamped to a special fixture, the clamping point position is adjustable

    Bending angle0-360° adjustable (can be preset to ±30°, ±45°, ±60°, ±90°)

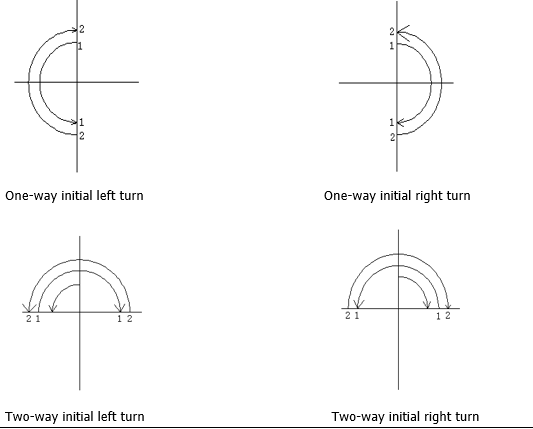

    Bending direction selection

    Bending rate0-60 times/min, touch screen preset
    Bending times0~999999 can be preset, the default is 100 times
    Load weight0.5N/mm², standard configuration: one each of 0.5, 0.75, 1.25, 2, 3, and 5N
    Roller

    Roller diameter: Φ10mm; 20mm; 30mm; 50mm; 75mm; 100mm. 2 each

    Rotation method: built-in bearing, can rotate with the sample (driven)

    Material: Nylon

    Distance between load-bearing weight and bending point50-250 mm (adjustable)
    Sample rotation point to hanging weight height150-500 mm (adjustable)
    Equipment sizeWDH=1500X800X1820mm
    Equipment weightAbout 180kg

    Appendix F Of TV Rheinland 2Pfg 2577/08.16 Robot Cable Bending Testing Machine


    Appendix F Of TV Rheinland 2Pfg 2577/08.16 Robot Cable Bending Testing Machine
