IEC 60335-2-75 Figure101 Splash Test Apparatus 0.4Mpa Electrical waterproof test

Product Information:

Standard: Conforms to IEC 60335-2-75 Figure101, .IEC60335-2-64 clause 15.1.1 and 15.1.2, IEC60335-2-36.

Samples and restrictions: Commercial electric stoves, ovens, stoves and commercial electric food processing machinery.

Test purpose: It simulates the action of water splashing from the ground to the base of electrical appliances when rain drops on the ground. It is used to test the waterproof performance of the bottom of household appliances such as electric food processing machinery, electric stoves, washing machines, etc.

Test principle: Water spray test specimen

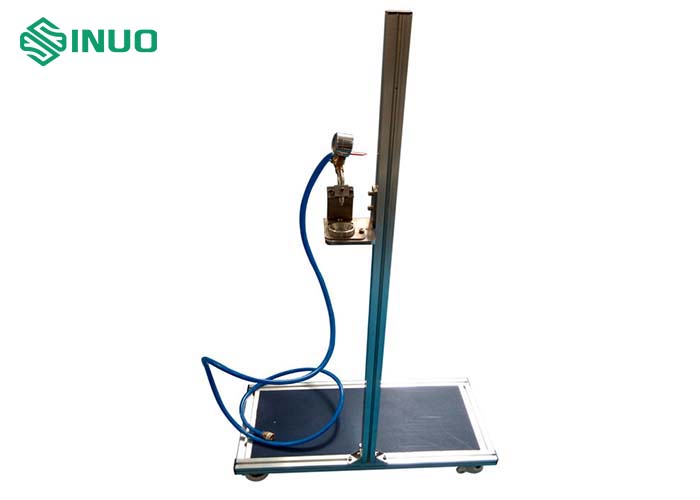

Equipment structure and features: This device adopts aluminum profile structure, and the splash structure can be adjusted up and down. It adopts Foma wheels, which can be moved or fixed. The nozzle, bowl and pipe are made of stainless steel, and the overall structure is waterproof and corrosion-resistant. It is equipped with a pressure gauge to display the current water pressure in real time. It can be used with a rotating table.

Technical Parameters:

Bowl	Size: bowl mouth φ35×bowl bottom φ25×height 10mm, made of stainless steel
Nozzle	Aperture diameter φ2mm, 60° inclination angle to the bowl, 50mm from the bottom of the bowl, made of stainless steel
Splashing device position	Bowl is 50mm below the lowest edge of the device
Pressure gauge	0.4Mpa
Test method	Specimen rotation (optional turntable), test time 5min, manual control
Splashing structure lifting stroke	1m
Overall dimensions	L*W*H=500mm×300mm×1200mm, weight 50kg
