    IEC 60695 Glow Wire Test Apparatus Initiation Temperature And Flammability Index Testing

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN772
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

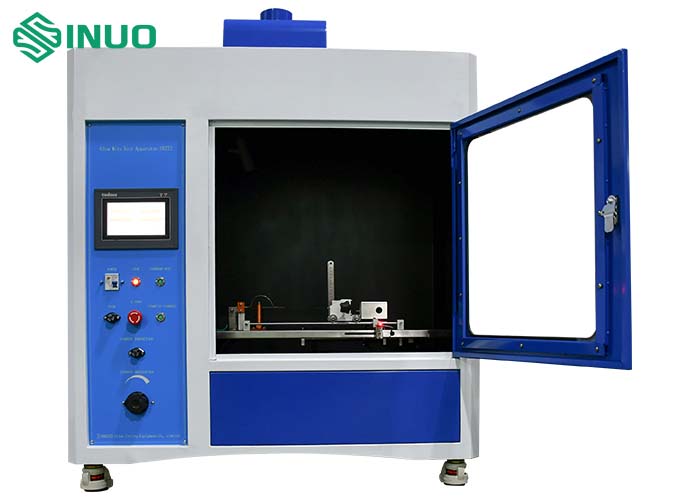

    IEC 60695 Glow Wire Test Apparatus Initiation Temperature And Flammability Index Testing


    IEC 60695 Glow Wire Test Apparatus Initiation Temperature And Flammability Index Testing


    Product information:


    This device is manufactured according to the standard of IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, it is required by IEC 60335 clause 30, IEC 60598, UL746A, etc. This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in s short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

    This instrument adopts a new design concept and uses an advanced digital stepping motor to achieve precise positioning, and at the same time, realize rapid adjustment after specimen replacement, which truly meets the requirements of simple and convenient operation. The control system adopts PLC control, each parameter can reflect the real situation of relevant parameters, which is more real-time and accurately, and the operation is intuitive and convenient, meeting the needs of scientific research, far exceeding similar products.


    Test principle:

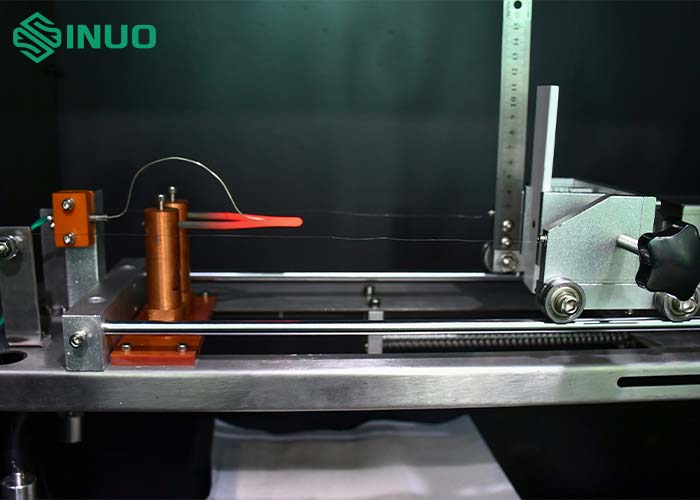

    The glowing filament whose material and shape is required(Ni80/Cr20) is heated to the testing temperature of 550 ℃ ~ 960 ℃ for 1 min by using the glow wire tester with large current. Then using required pressure (1.0N) vertically burns the test sample for 30s. By observing whether the test sample and bedding object ignite or the burning time, the users can judge the ignition danger of electric and electronic products. It is used for the ignition test, ignition temperature (GWIT) test, flammability test and flammability index (GWFI) test of solid insulating material and other solid combustible material.

    Technical parameters:


    Control & DisplayIntegrated PLC & 7” color touch screen
    Glowing Element

    Ф4mm ± 0.04mm Ni/Cr (77/20) special standard

    ring shape, horizontal standing

    Thermocouple

    1mm import K thermocouple (Brand: American B+B), the

    temperature resistance of armour is 1100 ℃

    (better than the standard of 1050 ℃)

    Temperature Precision

    500°C-750°C+10%, 750°C-960°C+10%

    Temperature fluctuation < 3 ℃

    Temperature sensing delay1.7S
    Thermostat12 bit A/D ±0.05%

    Specimen pressure

    on glowing filament

    0.95N±0.1N (adjustable)
    Maximum depth of heating7mm ± 0.5mm
    Specimen movement speedApprox. 13mm/S
    Testing time30s±0.1s (1s ~ 999.9s can be preset)

    Thickness of ignite

    bedding board

    Thickness10mm, white pine board cover

    12g /m 2 ~ 30g /m 2 standard silk paper

    Volume of test site≥ 0.5m³, black background, background illuminance ≤ 20Lx
    Dimension and weight

    W: 1130mm × D: 600mm × H: 1400mm,

    gas vent:100mm, 115KGS

    PowerSingle phase AC 220V±10% / 50Hz
    StandardIEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598, etc.
