    Manual Booster Pump for Chemical Battery Case Pressure Testing of Monolithic Cells

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1123B
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Manual Booster Pump for Chemical Battery Case Pressure Testing of Monolithic Cells


    Manual Booster Pump For Chemical Battery Case Pressure Testing Of Monolithic Cells


    Product information:

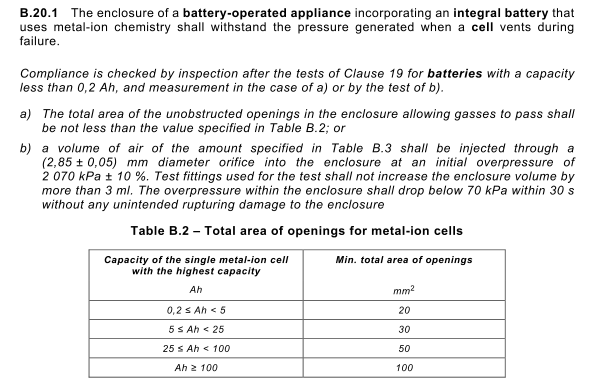

    Compliant with standards and clauses: IEC 60335-1: 2020-Appendix BB-20.1.

    Specimens and limitations: Contains monolithic cells using metal ion chemistry.

    Purpose of the test: For the measurement of the pressure generated when the enclosure of a battery-operated appliance containing a monolithic battery using metal ion chemistry withstands the battery during a fault, and to verify the enclosure strength of the battery case.

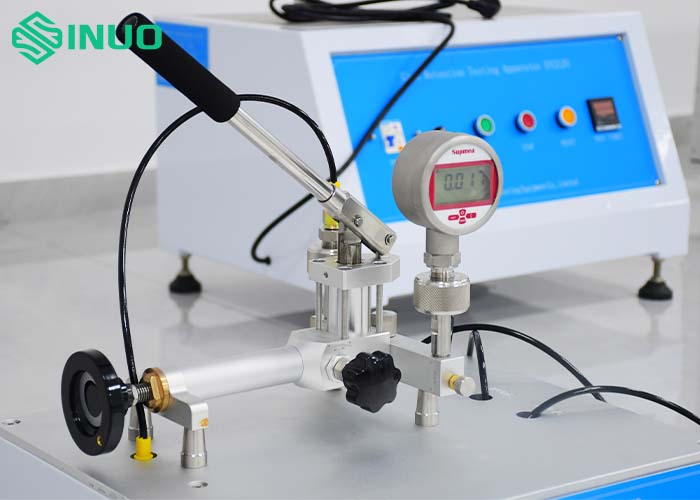

    Test principle: Use the hand pump to pressurize, monitor and feedback the pressure value in real time through the pressure gauge connected to the pipeline, so that the initial pressure of the sample reaches 2070kPa±10%. Then inject the air volume required by the standard from the orifice with a diameter of 2.85±0.05mm through the air filling mechanism, and then drop it below 70kPa within 30s.



    Structure:


    The equipment is controlled by a manual booster pump, which can read the pressure value, increase the gas capacity, adjust the test pressure, test time, etc. The manual booster pump and its pressure control device have stable performance, easy operation, and beautiful appearance. With the advantages of many similar products at home and abroad, it is the first choice of major domestic measurement institutions and laboratories.


    Technical parameters:


    Test station1 station
    Control methodmanual control, button operation
    Drive modeManual booster pump drive
    Test mediumGas
    Test pressure0.01-2.5mpa, pressure sensor monitoring
    Gas capacity

    20, 30, 50, 100ml, optional

    Test time0-999999s can be set
    Sealing jointOne set as standard, orifice Φ2.85±0.05mm
    Test processManual loading and unloading test, automatic detection process
    Use environmentAtmospheric pressure 80~106kpa, ambient temperature 5~40°C, relative humidity (20~80) %RH, place of use: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation
    Equipment sizeAbout 700×500×500 (mm) W×H×D
    Equipment weight100kg
    Use environmentPower supply: AC220V±10%/50-60Hz, use environment: working temperature 0-40℃, humidity 30%-90%.
