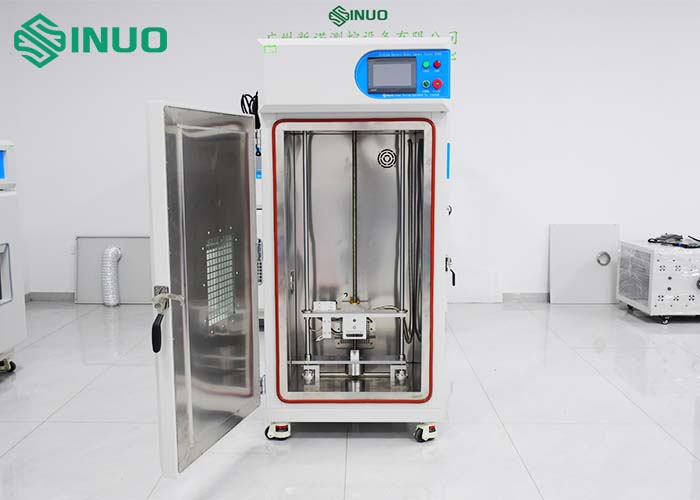

UL 2054 Battery Heavy Impact Test Machine 9.1±0.1KG Impact Weight
1000mm Height
Product information:
Standards:
UL1642 "Mechanical Tests in Lithium Battery Standards - Impact
Tests"
UL2054-2005 "Mechanical Tests in Battery Standards - Impact Tests"
UN38.3 "Standard Regulations for Testing Lithium Batteries and
Battery Packs - Impact Tests"
GB/T36276-2018 "Lithium-ion Batteries for Power Energy Storage"
GB/T36972-2018 "Lithium-ion Storage Batteries for Electric
Bicycles"
YD 1268- 2003 "Safety Requirements for Impact Tests on Batteries
and Chargers for Mobile Communication Handheld Devices"
SJ/T 11170-1998 "Collision Tests in Standard Mechanical Tests for
Household and Commercial Batteries"
IEC62281-2004 "Safety Requirements for Heavy Object Impacts of
Lithium Primary Batteries and Storage Batteries in Transportation"
YDT 2344.1-2011 General-purpose Lithium Iron Phosphate Battery
Packs Part 1: Integrated Battery Packs
MT/T 1051-2007 Lithium-ion batteries for mining lamps - Heavy
object impact
QB/T 2502-2000 "General specification for lithium-ion batteries -
Impact test"
GB31241-2022 "Safety requirements for lithium-ion batteries and
battery packs for portable electronic products"
Purpose:
This equipment tests the safety performance of batteries by using
different weights from different heights and different force areas.
According to the standard test, the battery should not catch fire
or explode.
Test method:
The test sample battery should be placed on a flat surface. A rod
with a diameter of 15.8mm is placed crosswise at the center of the
sample. A 9.1±0.1KG weight is free-falling from a height of
610±25mm to hit the battery surface with the metal rod, and
observed for 6 hours. Each sample battery only needs to be impacted
once, and a different sample should be used for each test.
The battery should not catch fire or explode.
Technical Parameters:
| Drop weight | 9.1±0.1kg |
| Drop height | 1~1000mm (heavy objects can be lifted to a certain height and
released. Ensure that the heavy objects fall freely in the vertical
direction without tilting or shaking) |
| Display accuracy | ≤1mm |
| Height accuracy | ±3mm |
| Display mode | Touch screen |
| Diameter of horizontal bar | 15.8±0.2 mm (This steel bar is placed vertically in the middle of
the battery, and a heavy object falls on the steel bar, and the
steel bar remains parallel to the bottom surface of the square
battery;) |
| Test space | W300 X D500 X H1000mm |
| Inner box material | SUS 201# stainless steel (1.2mm thickness, total thickness of
reinforcement and outer box is 80mm) |
| Outer box material | Cold mixed plate baking (1.5mm thickness) |
| Exhaust vent | 150mm, located above the back of the box |
| Box door | Single door, open observation window, cold handle door lock |
| Window size | 300*300*10mm thick tempered explosion-proof glass) |
| Lifting mode | Electric lifting |
| Upper and lower impact surface | Steel plate |
| Dimensions | W750XD700XH1600 mm |
| Power | AC 220V |
| Power | 500W |
| Machine weight | About 200KG |
Equipment Features:
- The standard weight is 9.1Kg and the diameter is 15.8mm (which can
meet different standards at the same time).
- Encoder displays the height. Intelligent control is adjustable from
0 to 1000mm (very convenient for customers to use).
- The double-column design allows the weight to fall freely and
effectively prevents safety problems.
- The 9.1kg or 10kg weight falls from a certain height (610mm or
1000mm) onto the sample, without bias, to prevent secondary impact
on the battery surface.
- Equipped with exhaust vents (to facilitate customers to exhaust the
smoke generated during battery testing outside the test room).
- Double-layer explosion-proof tempered glass window.
Test Procedure:
The impact test is applicable to cylindrical cells with a diameter
greater than 20 mm.
The test cell or component cell is placed on a flat, smooth
surface. A stainless steel bar (Type 316 or equivalent) 15.8 mm ±
0.1 mm in diameter and at least 60 mm in length or the longest
dimension of the cell, whichever is greater, is placed across the
centre of the test specimen. Using a nearly frictionless vertical
sliding rail or hammock, a weight of 9.1 kg ± 0.1 kg is dropped
from a height of 61 cm ± 2.5 cm onto the intersection of the bar
and the test specimen in a controlled manner, with minimum
resistance to the falling weight. The vertical rail or hanger used
to guide the falling weight shall be at an angle of 90 degrees to
the horizontal support surface.
The longitudinal axis of the test specimen at impact shall be
parallel to the plane and perpendicular to the long axis of the
stainless steel bar across the centre of the test specimen (see
Figure 3).
