Tensile Strength Test Equipment 50KN With Deformation Extensometer
Customized Test Stroke
Product information:
This machine adopts computer control, widely used in the mechanical
properties of various materials test, with special fixture is also
suitable for all kinds of finished products tensile, compression,
stripping, shear, tear, bending (folding) test. It can print a
number of data, according to different data to make graphic output
comparison, high control precision, easy to operate; Modular
design, a variety of accessories variety, flexible collocation.
Control software introduction:
1.Software operating system language: English.
2. Force value unit: N, KN, Kgf, Lbf
3. Length unit: mm, cm, inch can be freely converted
4. Control mode: computer software to set speed, set load break
(rupture), running time and other control modes
5. Type of curve: load-displacement, load-time, displacement-time.
Stress-strain, strain-time, stress-time. The vertical and
horizontal coordinates of the curve can be set arbitrarily.
Working conditions of the testing machine:
1. In the range of room temperature 10℃-35℃, the relative humidity
is not more than 80%;
2. Install correctly on a solid foundation or workbench;
3. In a vibration-free environment, leave no less than 1m space
around;
4. No corrosive media around;
5. The fluctuation range of the power supply voltage should not
exceed 10% of the rated voltage.
Technical parameters:
1. Test strength range: 0-5000kg (0~50kN)
2. Force measurement accuracy: 0.001Kg
3. Switch units: Kg, N, Lb
4. Load analysis: 1/250000
5. Load accuracy: ±0.5%
6. Displacement switch: mm, cm, in
7. Displacement measurement display accuracy: 0.01mm
8. Test effective width: 400mm
9. Test stroke: 900mm
10. Aperture of fixture: 50mm

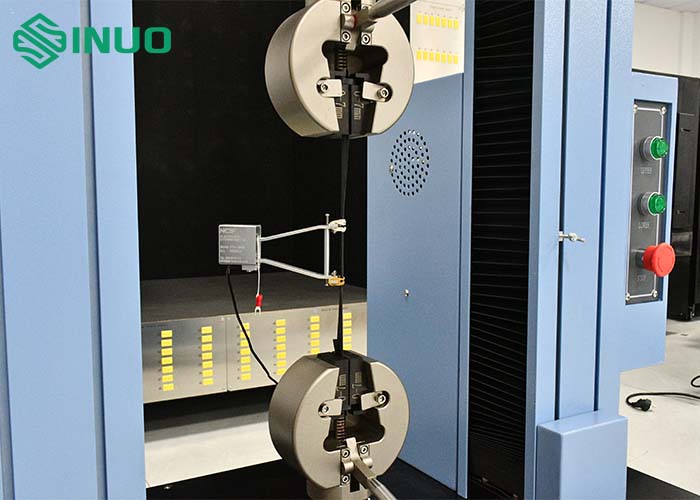

11. Equipped with small deformation extensometer
12. Speed test range: 0.01-500mm /min stepless speed regulation
13. Transmission system: servo motor, Taiwan ZPT ball screw,
computer software TM2101
14. Safety device: overload emergency stop device, up and down
travel limit device, automatic breakpoint stop function
15. Fixture: a set of standard universal fixture made according to
customer products
16. Accessory configuration: a desktop computer
17. Operation mode: Computer control, the use of windows working
platform, hierarchical mode of operation coupled with detailed help
documents and tips make it the most easy-to-use software in the
testing machine industry
18. Using multi-thread parallel processing technology, real-time
display of force-displacement, force-time, displacement-time,
stress-strain and other curves during the test process, you can
switch to the curve screen you want to see at will, and you can
view user Settings. The industry's innovative Microsoft Word report
format is easy to use, as long as you know how to use Word, you can
edit the beautiful report you want
19. Power supply: Single phase 120V/50HZ
20. Power: 1.0KW
21. Machine weight: about 600KG
22. Machine dimension: about 800*600*2000mm
Configuration list:
| 1. Testing machine host | A Set |
| 2. Servo motor | A Set |
| 3.High quality and high precision load sensor | One PC |
| 4. Deceleration system | A Set |
| 5. Taiwan ZPT ball screw | A Set |
| 6. Tensile fixtures | A Set |
| 7. Small deformation extensometer | A Set |
| 8. TM2101 measurement software | A Set |
| 9. Desktop computers | A Set |
