    IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2210-2D
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm


    IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm


    Product information:


    This test probe meets the requirements of IEC 60335-2-64 clause20.2, etc. Test probe similar to that of probe B of IEC 61032 but having a circular stop face with a diameter of 56mm instead of the non-circular face.


    Technical parameters:


    ModelSN2210-2D
    NameTest Probe B
    Joint 130±0.2 mm
    Joint 260±0.2 mm
    Fingertip to baffle120
    CylindricalR2±0.05 mm
    SphericalR4±0.05 mm
    Fingertip cutting bevel angle37o 0 -10′
    Fingertip taper14 o 0 -10′
    Test finger diameterФ12 0 -0.05
    Thrust Plate diameterФ56 mm
    Thrust Plate length730 mm

    Notice:

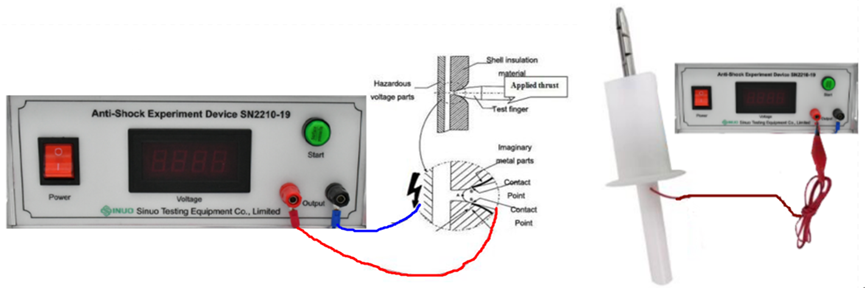

    1. For verifying whether LIVE PARTS touched, the probe is equipped with alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:

    2. Please do not damage the appliance shape (such as scratching, bending, etc.).

    3. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

    4. Be careful of electric shock.


    IEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mmIEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mmIEC 60335-2-64 Similar Test Probe B But Having A Circular Stop Face With Diam 56mm
