IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Product information:

This device meets the standard of IEC60335-1:2004,IEC60335-2-2:2009,IEC60312-1:2010.It is used to assess the mechanical performance of vacuum cleaner hoses under left and right flexing.The device uses a motor-driven mechanism to perform reciprocating flexing oscillation testing of the current-carrying hose.

Samples and Limitations:

Vacuum cleaner hoses,Water-suction cleaning appliance hoses,Washing machine water hoses

Equipment Structure and Features:

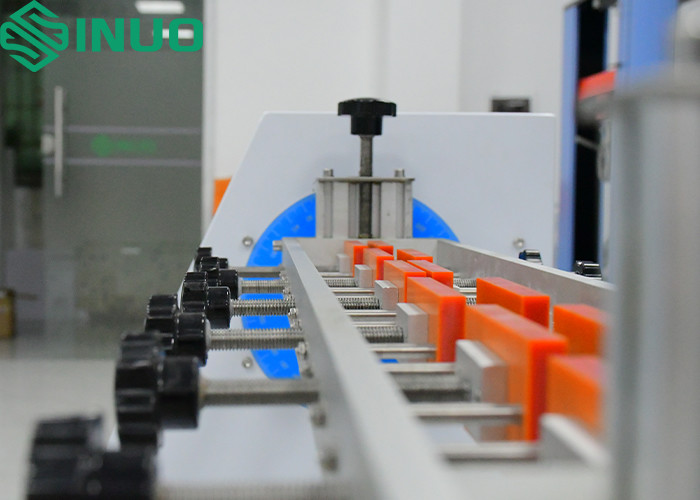

The reduction motor controls the oscillating structure for reciprocating motion, with left and right flexing angles adjustable directly via the touchscreen. The machine stops automatically after reaching the preset test count.

Technical parameters:

Operating Environment	Power supply: AC220V±10% / 50-60Hz Operating temperature: 0-40℃ Humidity: 30%-90%
Control Method	PLC control, touchscreen operation
Test Stations	5 stations, synchronized
Drive	Servo motor + precision reduction gear
Flexing Angle	0-180° (Presettable: ±30°, ±45°, ±60°, ±90°)
Flexing Direction Selection
Flexing Speed	0-60 cycles/min, presettable
Test Count	0-999999 cycles, presettable
Load Weights	10N, 20N

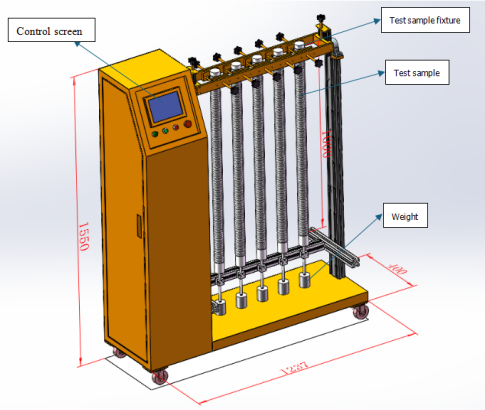

Equipment dimensions	approximately 1300×400×1550 (mm) (W×D×H)
Equipment weight	150kg
