    BS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45A

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2219-BS
    Certification : Calibration Certificate(Cost Additional )
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    BS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45A


    BS1363-2 Temperature Rise Test System with Dummy Front Plate


    Product Description:


    This advanced Temperature Rise Test System (Model: SN2219-BS) is engineered to rigorously evaluate electrical components under thermal stress, fully compliant with IEC 60884-1:2022 (Clause 19, Figure 20) and BS1363-1/2 standards (Figures 17a, 17b, 30). The system ensures precise temperature monitoring and load simulation for safety certification.


    Technical Specifications:

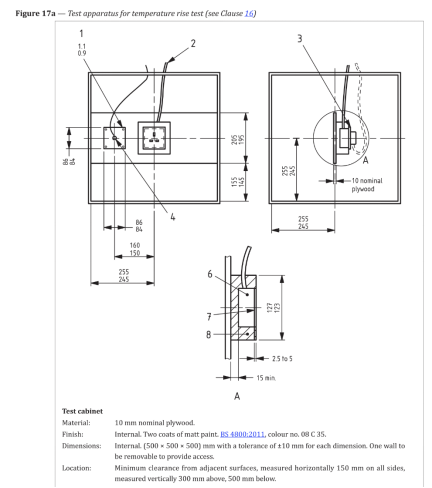

    1.Plywood box: Constructed from BS1363-1 Figure 17a.


    2. Thermal Clamping Assembly: Designed per BS1363-1 Figure 17b.



    3. BS temperature rise plug: Conforms to BS1363-2 Figure 30.


    4.Dual-Channel DC Power Supply: Delivers test currents as specified in Table 2.



    5.8-Channel Temperature Logger:


    Display formCurve (historical curve), bar graph, current alarm (historical alarm), file record list
    Measuring range-200 to 1820℃ (adaptable to the thermocouple graduation range)
    ThermocoupleK J E T N S R B
    Basic accuracy0.2℃+2digits (excludes thermocouple error)
    Display5-inch TFT touchscreen (854×480 pixels) with real-time curves, alarms, and data logging.
    Channel8 channels

    6.Dual-Channel AC Load: Adjustable 0–45A (30A+15A) via resistive control.


    7.Automation: Above items 4~6 are integrated in one control cabinet, PLC-controlled with touchscreen interface for seamless operation.


    BS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45ABS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45ABS1363-2 Temperature Rise Test System With Dummy Front Plate Max. 45A
