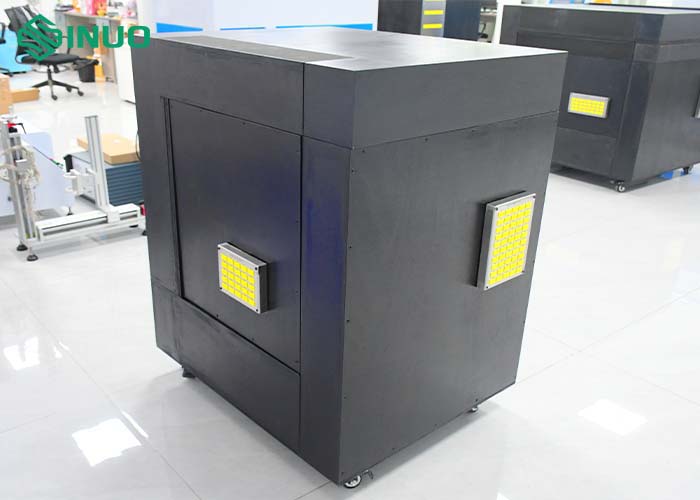

IEC 60335-1 Oven Test Corner 600*600*600mm With 100 Measurement Points

Product information:

This test corner conforms to the standard requirement of IEC 60335-1 clause 11.2, IEC60065 clause 7, etc. It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.

The number on every connector socket and the test point number on the test corner are corresponding.

This test corner adopts K-Thermocouple for measuring.

Technical parameters:

1. Inner dimensions: 600*600*600mm length*width*height, outer dimensions: 900*750*1000mm;

2. Box type, front opening 600*600mm;

3. Total temperature measurement points: 100 (25 each on the two side panels, bottom panel, and back panel);

4. Center distance of temperature measurement points: 100*100mm square;

5. Temperature measurement brass sheets: 15mm diameter, 1mm thickness;

6. Linan plywood: plywood with a thickness of about 20mm, matte black paint on both sides;

7. Contains copper sheets;

8. OMEGA thermocouple K type (pre-installed in the test board);

9. 4 pcs of 2.5-inch casters with brakes;

11. Contains thermocouple connection sockets
