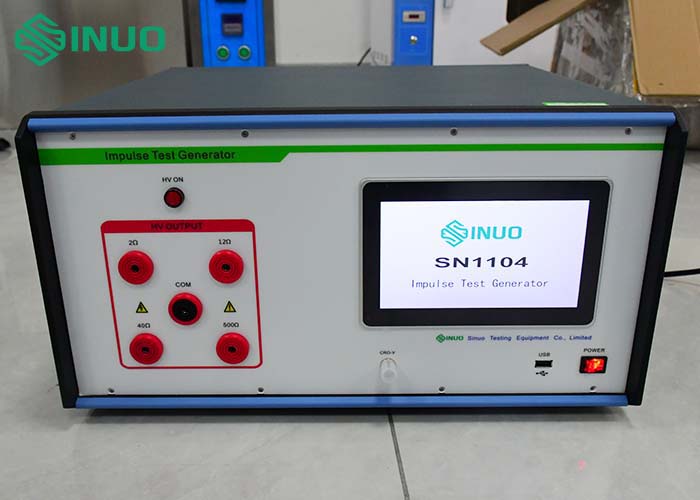

    IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1104
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30 sets per month
    Delivery Time : 25 Days
    • Product Details
    • Company Profile

    IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing


    IEC 60335-1 Clause 14 Impulse Test Generator Max. 12.5kV Transient Over Voltage Testing


    Product Information:

    Standard: Conform to IEC 60335-1 clause 14, etc.

    Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

    Test sample: Household appliance, Audio, video and similar electronic apparatus.

    Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.


    Technical Parameters:


    ModelSN1104
    DC high voltageMax. 12.5kV
    Impulse voltage wave

    Impulse wavefront time: 1.2 µs ± 30 %;

    Half value of after wave time: 50 µs ± 20 %

    Please note that the waveform should be checked on an external oscilloscope

    Instrument internal resistance

    2Ω,12Ω, 40Ω, 500Ω

    (Accuracy ± 10%)

    Peak voltage

    Low: 300 V~ 2,500V;

    High: 2,500 V~12,500V

    Impact interval time5 ~ 99s
    Impact cycles1 ~ 9999
    PolarityPositive and negative
    Working power sourceRated voltage: ~ 220V±10%, 50/60Hz
    Dimension430mm×180mm×480mm
    Weight30 KG
