    IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2121-L
    Certification : Calibration Certificate(cost additional )
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets / Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet


    IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet


    Product information for Power Cord Flexing Test Apparatus:

    The power cord flexing test apparatus meets the requirements of IEC 60884-1:2022 clause 23.4 figure 28, which is used to process the flexing test for the flexible cable of non-rewirable plugs and non-rewirable portable socket-outlets.

    The test times (up to 999999) can be preset on this test apparatus, and the test can be carried on and the numbers of tests can be calculated automatically. When the test times reach to the preset value, the system will shut down automatically and give out completion signals. Once the test apparatus connects to external load cabinet, it can be used to process test with load.


    Technical parameters for Power Cord Flexing Test Apparatus:

    Power SupplyAC220V, 60Hz
    Test Stations6, with 6 sets of clamps
    Flexing Times1-999999 (can be preset). With 6 independent counters corresponding to each station, and there is a general counter
    Flexing Rate10~60 rpm (can be adjustable)
    Flexing AnglesSwivel angle on either side for 45°, 60°, 90°
    Sample Connecting Wires6 PCS
    Weights10N/20N*6(the weight as per UL requirements is 113g and 284g)
    Breaking indicationIndicator display
    DimensionsL*W*H=870mm *610mm* 820mm
    Conforms to standardIEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620


    Mechanical theory

    The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.

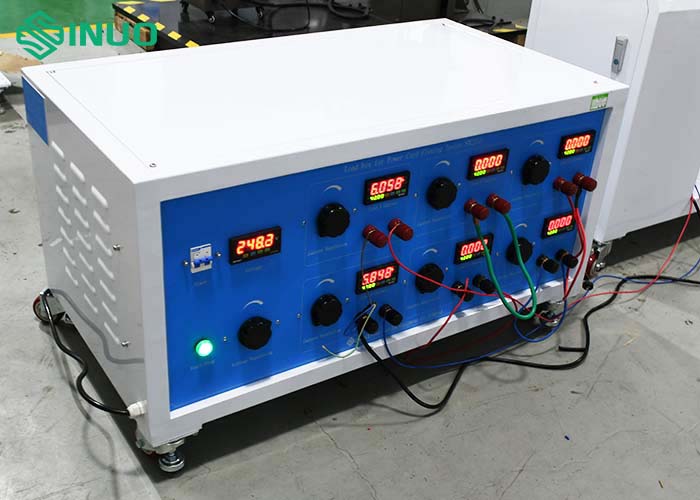

    Product information for 40A Load Cabinet:


    This load cabinet meets the requirements of IEC60884-1 clause 23.4, UL and etc. It is used to supply test current for power lines, cables and electrical materials which required test current under 40A. The device has six output current loop, the voltage is adjustable between loops. The test machine uses imported instruments, has rational layout and beautiful appearance, the operation of the device is convenient.
    Note: this test equipment is suggested to work together with flexible cable flexing test apparatus, showing as following:

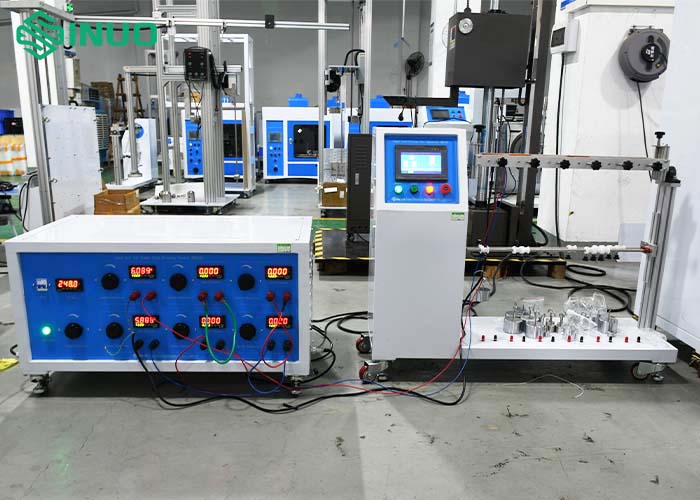

    IEC 60884-1 Six Stations Power Cord Flexing Test Apparatus With 40A Load Cabinet

    Flexing Test Apparatus & Load Cabinet


    Technical parameters for 40A Load Cabinet:

    Input voltageAC220V±5%, 50Hz or match client's local power supply
    Output current0 ~ 40A is arbitrary adjustable
    Output voltage0 ~ 280V
    Test stationSix stations
    Ammeter Accuracy±1%
    Connecting wire7-pin aviation wire
    Environment temperature-10℃~50℃
