BS1363-1 Test System For Temperature Rise+ Dummy Plate For Temperature Rise AC Load 20A

Product overview:

The test apparatus confirm to IEC 60884-1:2022 clause 19 figure 20, designed according to BS1363-1 Figure 17a , figure 17b, BS1363-2 figure 30 etc.

.

Technical parameters:

This test system consists of :

1. Plywood box as per BS1363-1 figure 17a)

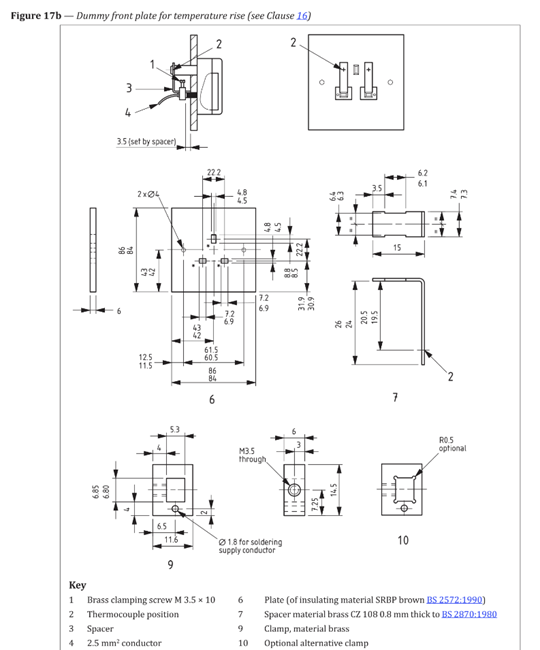

2. Temperature rise clamping element as per BS1363-1 figure 17b)

3. BS temperature rise plug as per BS1363-2 figure 30

4. A dual channels DC power source, provide test current in Table 2 below:

5. A 8-channel temperature measuring instrument:

6. A dual channel AC load: 0-20A adjustable (using resistor adjustment)

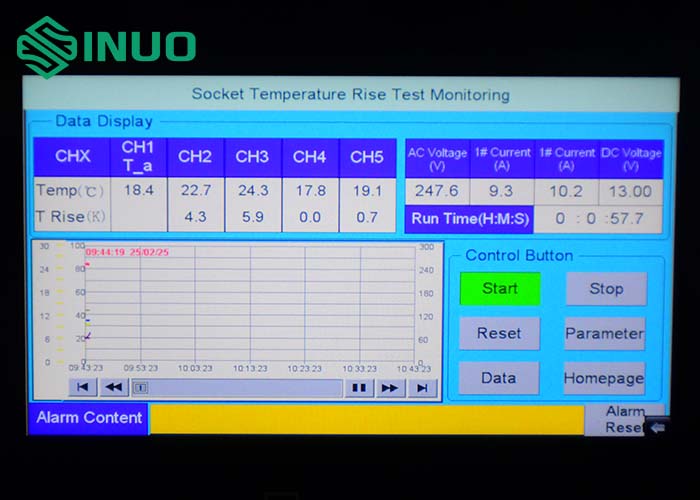

7. Above items 4~6 are integrated in one control cabinet, the overall system adopts PLC control + touch screen display.
