    Oxygen Bomb Air Aging Test Chamber For Rubber Aging Test IEC 60335-1 Clause 22.32


    Oxygen Bomb Air Aging Test Chamber For Rubber Aging Test IEC 60335-1 Clause 22.32


    Product information:

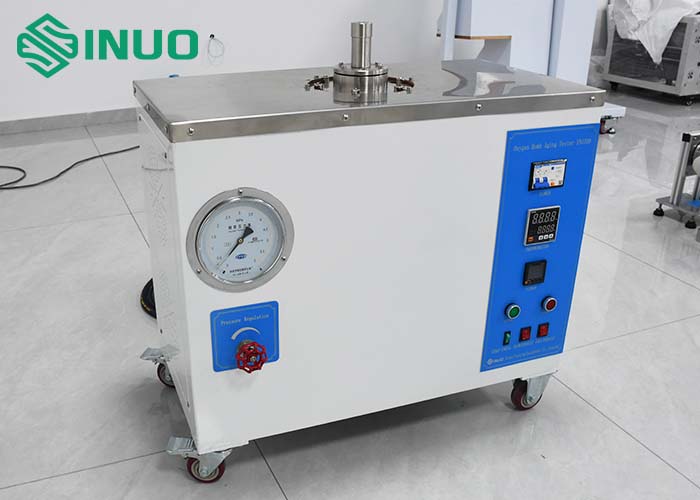

    This aging tester conforms to the standard requirements of IEC60335-1 Clause 22.32. It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber (plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.


    Technical parameters:


    1. Power voltage:AC 220V±10%, 50Hz

    2. Maximum working pressure: 2.5MP (gas source should be prepared by client)

    3. Secure blow -up pressure: 2.7~3.3MP

    4. the self-control temperature range:indoor temperature 0~200℃

    5. Equipment overall dimensions: approx. 560×420×670mm

    6. Working volume: ≥3500cm3

    7. Test volume diameter:123mm

    8. Test volume depth: 320mm

    9. Heater power: 2.4KW

    10. Temperature alarm:0~200℃ adjustable

    11. Temperature deviation: ±0.5℃

    12. Temperature control: digital display

    13. Temperature control: intelligent control

    14. Material of tank: inside is stainless steel and outside electrostatic spraying steel plate

    15. Dimension of tank: diameter 123 × high 320mm


    Oxygen Bomb Air Aging Test Chamber For Rubber Aging Test IEC 60335-1 Clause 22.32
