    Static Tension And Compression Test Device For EV Charging Gun Cable Firmness Testing

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNF02
    Certification : Calibration Certificate(cost additional )
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets / Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Static Tension And Compression Test Device For EV Charging Gun Cable Firmness Testing


    Static Tension And Compression Test Device For EV Charging Gun Cable Firmness Testing


    Application, equipment principle and structure:

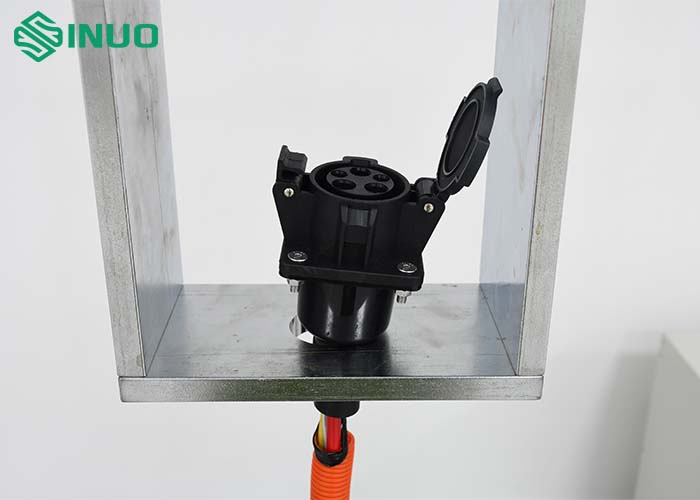

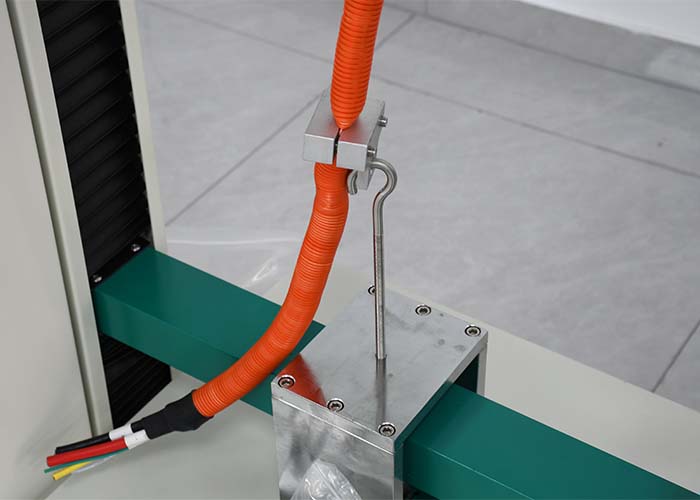

    It is used to test the firmness of the clamping device of the charging gun cable. It is also used for the compression test of the cable to assess whether the charging gun cable can withstand the tension and compression in normal use, and to test its mechanical strength and reliability.

    The motor drive mechanism is used to perform linear pull, pressure and other actions on the sample. The pull/pressure value and constant force time can be preset through the touch screen.

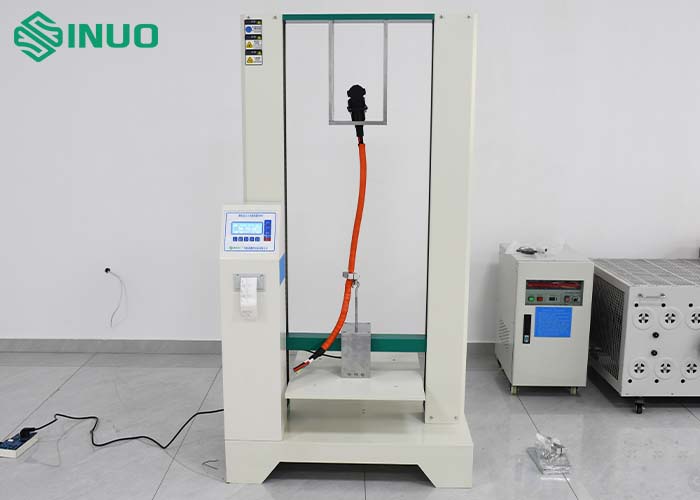

    The structure diagram is shown below:



    Main technical parameters:


    Sample rangeCharging gun
    Test stationSingle station
    Electrical control methodTouch screen operation
    Drive modeMotor drive
    Sample clamping method

    Mechanical clamping,

    1. Configure 2 pc of tension clamp plates

    2. Configure 1 pc of 500*500 compression plate

    Internal dimensions of the columnWDH=600*600*1000mm
    Height of stroke0-600mm
    Test rate1-300mm/min can be preset
    Constant force time1-999s, start timing after the force value is reached
    Tension/Compression forceForce sensor monitoring, range 5000N, preset force value, switchable units N, kg, lb, accuracy 0.25, resolution 0.1N
    Test items

    Charging gun tension test

    Charging gun compression test;

    Equipment size and weightApprox.: 1200×600×1800 (mm) W×D×H, Equipment weight: 220kg
