    IEC 60312 Vacuum Cleaners Dust Fiber Removal Performance Test System

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN3319
    Certification : Calibration Certificate (Cost Additional)
    Price : Tailored
    Payment Terms : T/T
    Supply Ability : 1 Set Per Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

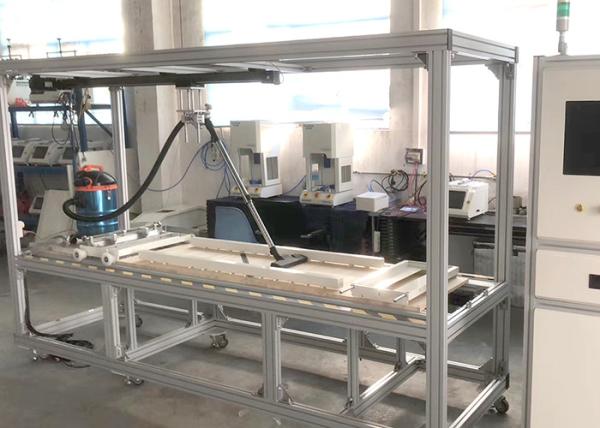

    IEC 60312 Vacuum Cleaners Dust Fiber Removal Performance Test System


    IEC 60312 Vacuum Cleaners Comprehensive Performance Test System


    System Overview:


    The system is designed and manufactured in strict accordance with the requirements of the IEC 60312-1:2010 standard. It covers various types of dry vacuum cleaners for dust removal, fiber removal, thread removal and other performance verification. It is a comprehensive vacuum cleaner cleaning performance test system, suitable for testing and certification institutions, testing department of factory laboratories . The system includes operating mechanisms that comply with various actions, dust pre-cleaning and dispersing and embedding devices, as well as preparations for various dust removal tests and test accessories, assisted by intelligent computer control system, which are truly comprehensive and compatible. The concept of one machine with multiple functions and one-stop testing.


    Standards:


    IEC60312-1:2010 Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance


    Main Technical Parameters:


    No.:

    Item

    Specifications

    1

    Input power supplyMatch client’s local power distribution

    2

    Control

    Computer & software

    3

    Test stationSingle or can be customized

    4

    Vacuum cleaner power on-off controlThe system automatically controls the on and off time of the vacuum cleaner

    5

    Test cycles0-999999 can be preset

    6

    Test speed

    0.5±0.02m/s, can be preset other test speed

    7

    Test stroke0-1200mm can be preset

    8

    Test platform size

    2000mm*1350mm

    9

    Test contents

    Can be selected according to requirements:

    1. Dust removal on smooth hard floors

    2. Dust removal test on hard floor with gaps

    3. Dust removal test on carpet (including carpet beating and dust dispersing and embedding device)

    4. Dust removal test by the wall (including carpet beating and dust spreading and embedding device)

    5. Fiber removal ability test on carpet

    6. Fiber removal ability test on decoration

    7. Removing thread test from carpet

    10

    Test accessories

    Can be selected according to requirements:

    1. Laboratory room structure and requirements (provided by the customer)

    2. Reciprocating movement mechanism

    3. Hardwood floors

    4. Test carpet

    5. Hardwood floors with gaps (grooves)

    6. Carpet tapping machine

    7. Carpet clamping device and guide rail

    8. Dust dispersing and pressing device

    9. Precision electronic balance

    10. T-shaped right angle device

    11. Fiber distribution template 1

    12. Fiber distribution template 2

    13. Test mat frame

    14. Test dust, fiber, thread end, test pad (provided by the customer)

    IEC 60312 Vacuum Cleaners Dust Fiber Removal Performance Test System
