IEC60669-1 3 Synchronous Stations Switch Life Testing System

System overview:

This testing system meets the requirements of IEC60669-1 clause 18 and 19, IEC 60884-1: 2013 clause 20, 21, figure 16, IEC 61058-1, IEC60065:2014 clause14.7 and clause 15.1, etc.

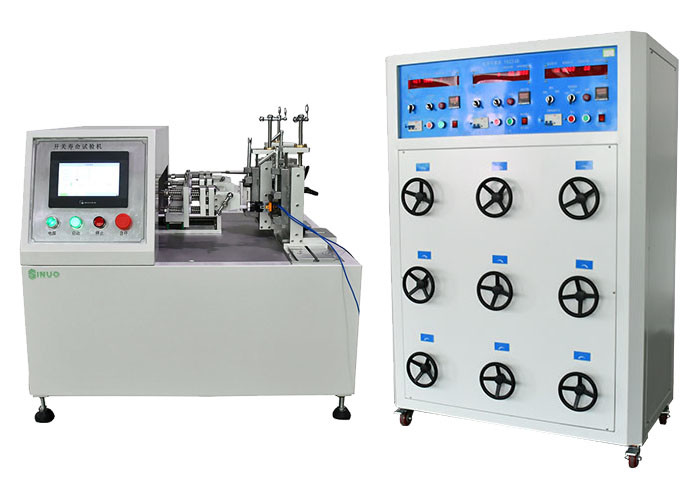

The testing system consists of one insertion & withdrwan testinge quipment and one 3-station load cabinet. The insertion and withdrawn test equipment works together with the load cabinet, can achieve making and breaking ability test and the normal operation endurance test of the plugs, sockets and switches for household and similar fixed-electrical installations. The testing purpose is to see whether the switches or the plugs and sockets can endurance the mechanical damage or electric fatigue failure during the normal operation. Whether the contact adhesion occurs or there is a phenomena of being the on (off) station for a long time, which is the criterion of judging the sample is over damage or not.

The testing system has 3 synchronous stations, which can test linear switches, plugs and socket-outlets synchronously, it will automatic stop and alarm if one of the stations in abnormal running, and the other stations keep in normal running. The system is suitable for the load current less than 25A plugs, sockets, push-button switches, toggle switches, rocker switches.

Technical Parameters:

No.	Item	Parameters
1	Power	220V±10V, 50Hz (or match client's local power supply requirements)
2	Station	3 synchronous stations
3	Operation interface	7-inch color LCD touch screen
4	Drive mode	Servo motor + ball screw
5	Control system	PLC control system
6	Test times	0～999999 times, can be preset
7	Conduction time	0～99.9s, can be preset
8	Close time	0～99.9s,can be preset
9	Test stroke	Linear: 0～100mm, can be preset
10	Test speed	Linear: 0～200mm/s,can be preset
11	Load voltage	0～300V
12	Load current	0～30A
13	Power Factor	0.3～0.98
14	Load Type	Resistive, inductive, capacitive three-in-one, switchable
15	Capacitive Load	70uf, 140uf,7.3uf are switchable
16	Atmospheric pressure	80～106kpa
17	Ambient temperature	5～40°C
18	Relative humidity	(20～90)%RH
19	Use environment	Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place
