    IEC 60065 230° Rotating Angle Corrosion-resistance Metal Mandrel Test Apparatus

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2204
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

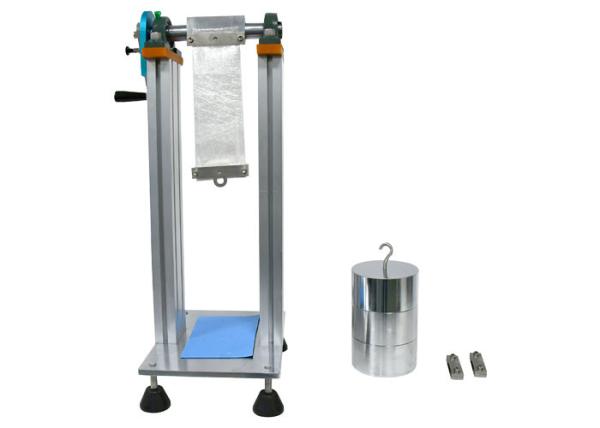

    IEC 60065 230° Rotating Angle Corrosion-resistance Metal Mandrel Test Apparatus


    IEC 60065 Corrosion-Resistance Metal 230° Rotating Angle Mandrel Test Apparatus


    Product Overview:


    This test apparatus conforms to IEC60065:2014 clause 8.21, figure 14~16, IEC60558-1 Fig6, IEC 60950 and etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.

    This test apparatus has the mechanical limits in the position of 0o and 230o to make sure the accuracy of the testing angle.


    Technical Parameters:


    Mandrel MaterialMade of corrosion-resistance metal
    Bracket MaterialAluminum profile
    Weights1N*2,50N*2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen)
    Force of the two terminals of material foil1N (two sets of 1N weights, also the clamping device for metal foil)
    Rotating angle of the mandrel230 o
    Height of the mandrel to the bottom of the device500mm

    How to rotate the mandrel to 230° position:


    Pull out the position locking pin, then the mandrel is rotated from 0°limit position to 230°limit position, then the position locking pin is locked. Please refer to following picture.
