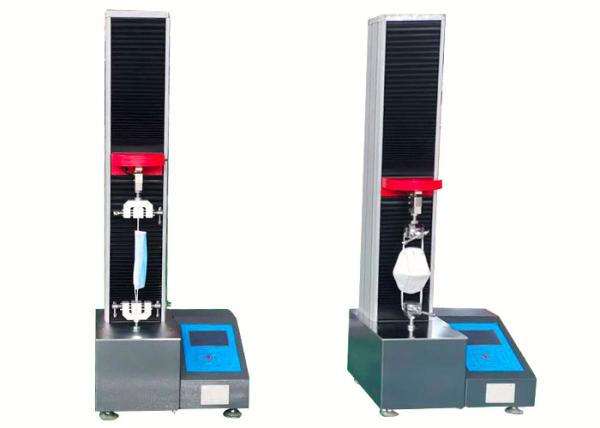

Medical Masks Digital Tensile Testing Equipment Mask Band Breaking
Strength Tester
Product overview:
This mask tensile testing machine is used to carry out tensile test
for medical masks, disposable masks, respiratory protective
respirators, other masks, respirators, etc.
It is also suitable for testing the mechanical properties of
various flexible packaging materials, such as tensile properties.
It can process tensile, elongation, peeling, deformation, tearing,
heat sealing, adhesion, puncture force and other performance tests
of metal, rubber, plastic, spring, wood, knitted fabric, silk,
film, adhesive, tape, adhesive, medical patch, protective film,
combination cover, back sheet material, non-woven fabric, paper
fiber, etc.
Applied standards:
CNS 11888,JIS K6854,PSTC-7,ISO 37,AS 1180.2,BS EN 1979,BS EN ISO
1421,BS EN ISO 1798,BS EN ISO 9163,DIN EN ISO 1798,GOST 18299,DIN
53357,ISO 2285,ISO 34-1,ISO 34-2,BS 903,BS 5131,DIN EN 12803,DIN EN
12995,DIN53507-A,DIN53339,ASTM D3574,ASTM D6644,ASTM D5035,ASTM
D2061,ASTM D1445,ASTM D2290,ASTM D412,ASTM D3759/D3759M, etc.
Features:
1. Using LCD digital display controller working platform, all
parameter settings are processed in the form of dialog box, easy to
operate.
2. Display real-time force value, peak value, speed, test times.
3. Humanized design, simple operation.
4, instrument storage: 50 test results, operator can delete any one
or more groups.
5. Printout: Can connect to a micro thermal printer output.
6. Unit of strength: N, kN, kgf, gf, lbf are selectable.
7, displacement unit: mm, cm, in are selectable
8. Strength unit: Pa, kPa, Mpa, kgf / cm2, lbf / in2 are
selectable.
9. Protective measures: over-stroke protection, over-strength
protection, over-time protection, external limit protection and
many other protection methods.
10. High sensitivity, instantaneous determination of crushing and
automatic shutdown
11. English visual display
12. Test, rise, fall, return speed can be set by any input, and it
can be controlled accurately.
13. The test returns automatically and quickly after the test is
completed, avoiding long waiting and speeding up the test
efficiency.
14. Test result: The test is automatically recorded and saved
without manual storage.
15. Multiple test items and multiple units are available to meet
multiple test standards.
16. High accuracy: adopting high-precision S-type sensor, the
maximum accuracy can reach 0.5%.
17. Built-in special calibration mode, which is convenient for
third-party metrology and calibration institutions to perform
calibration and certification on the instrument.
18. Taiwan TBI high-precision ball screw transmission, high
efficiency, durability and high straightness.
19. High performance motor, low noise, small vibration and long
service life.
20. High-quality S-type alloy steel sensor, high precision, strong
resistance to external force and overload.
21. The outer box of the machine is made of A3 steel plate,
electrostatic powder spraying and plastic coating.
Technical parameters:
| Name | Specifications |
| Capacity (kgf) | 2 kgf,5 kgf,10 kgf,20 kgf,50 kgf,100 kgf,500 kgf are optional |
| Switchable force units | N, kN, kgf, gf, lbf |
| Switchable intensity units | Pa, kPa, Mpa, kgf/cm2, lbf/in2 |
| Switchable displacement units | mm, cm, in |
| Load resolution | 1/200000 or 1/300000 |
| Load accuracy | ±0.5% |
| Stroke (including fixture) | 800mm |
| Test speed | 0.01-500mm/min |
| Speed accuracy | ±1% |
| Displacement decomposition | 0.001mm |
| Data sampling frequency | 500HZ |
| Software | Professional test software |
| Transmission mechanism | Servo motor or stepper motor + Taiwan Shangyin ball screw +
precision synchronous wheel |
| Volume (length * width * height) | 500*400*1350mm |
| Weight (approx.) | 70kg |
| Power supply | AC220V, 50Hz or match client's local power supply requirements |

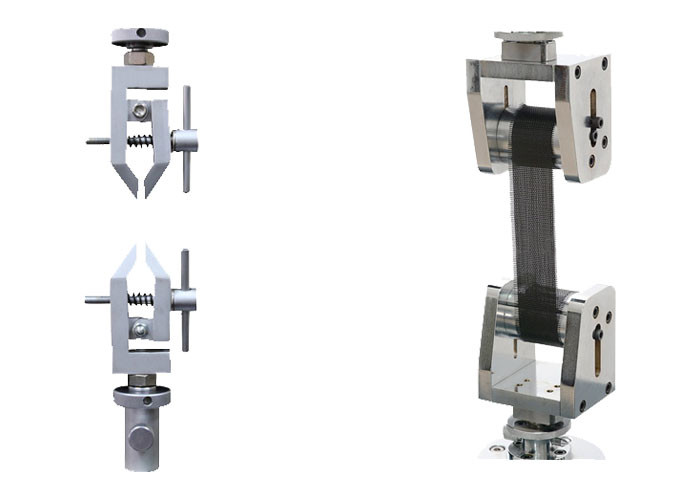

Various of sample fixtures can be customized
