    IPX3 IPX4 Oscillating Tube Test Equipment Needle Pinhole Aperture Φ0.4mm

    IPX3 IPX4 Oscillating Tube Test System for Protection Against Spraying and Splashing Water


    Overview:


    This open type IPX3 and IPX4 oscillating tubes test system is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.


    Standards compliant:


    IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4
    IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

    Structure:


    The test equipment consists of an oscillating mechanism, an electrical control cabinet and a turntable. One end of the oscillating mechanism is mounted on the wall, and the other end of the oscillating mechanism is fixed on the floor support, the tube is caused to oscillate by motor driving. The turntable has a rotation speed of 1r/min, to make the enclosure of the specimen to be splashed in all directions. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open structure.


    Technical parameters:


    Control & OperationPLC and touch screen intelligent control system
    Oscillating Tube Radius

    R200, R400, R600, R800, R1000, R1200, R1400, R1600mm are optional, made of stainless steel

    IPX3 IPX4 Oscillating Tube Test Equipment Needle Pinhole Aperture Φ0.4mm

    Needle Pinhole ApertureΦ0.4mm
    Spray Holes Distribution

    IPX3:over an arc of 60° either side of the center point (120°)

    IPX4:over the whole 180° of the semicircle

    Hole spacing: 50mm

    IPX3/4 SwitchingSwitching by changing a certain number of blind hole needles or through-hole needles
    Oscillating AngleIPX3:120°(±60°); IPX4:350°(±175°)
    Oscillating Speed

    IPX3:4s /cycle(2×120°);

    IPX4:12s /cycle(2×350°);

    Water Flow1-10L/min adjustable
    Test Time0.01S~99.9 min, can be preset
    TurntableDiameter:Φ600mm, rotation speed: 1r/min, can pause at 4 angles, lifting height: 350-1000mm, load capacity: ≤50kg
    Pressure Gauge0~0.25MPa
    Water Storage SystemThe control box and the water storage tank are integrated, the water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water.
    OptionalThe handheld spray nozzle as per IEC 60529m figure 5 is optional
    Safety ProtectionPhase sequence protection, leakage protection, water shortage protection, abnormal protection
    Equipment DimensionsAccording to the sizes of the oscillating tubes selected

    How to change the different oscillating tubes?


    The connection parts of the oscillating tubes adopt flange structure, which is easy for disassembly and installation, and the support structure can be movable to achieve different distances, that makes the overall system can be compatible with different sizes oscillating tubes.


    IPX3 IPX4 Oscillating Tube Test Equipment Needle Pinhole Aperture Φ0.4mm

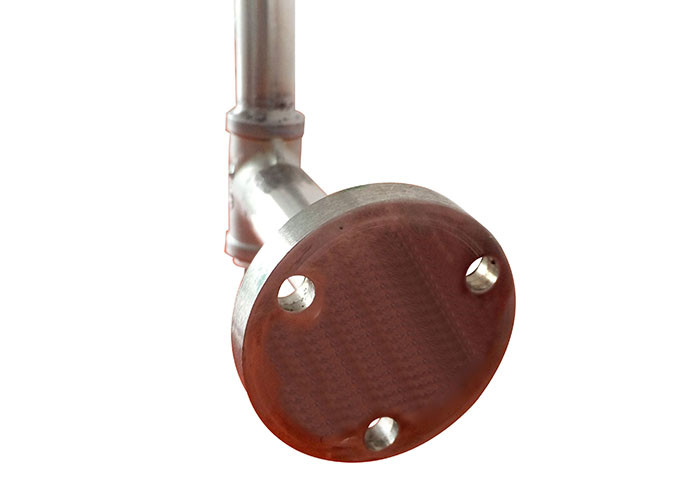

    Flange joint
