    IPX9 IPX9K Water Ingress Testing Equipment / High Pressure And Temperature 80±5°C Water Jetting Test Chamber

    IEC 60529 IPX9 IPX9K High Pressure High Temperature Waterproof Test Equipment


    Overview:


    The high pressure and high temperature testing chamber is used to verify the protective performance of the Passenger vechiles, buses, lamps, motorcycles and other parts and components under high pressure and temperature water jetting at degree IPX9 (IPX9K)..


    This equipment is designed and manufactured according to:

    IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

    IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)” IPX9

    ISO20653-2013 “Road vehicles-Degrees of protection (IP code)-Protection of electrical equipment against foreign objects, water and access” figure 7, 8, 9 and table 7 (9K) ”

    DIN40050-9 “Road vehicles-Degrees of protection (IP code)-Protection against foreign objects,water and access Electrical equipment>figure 8and table 8 (9K) ”


    Structure Features:

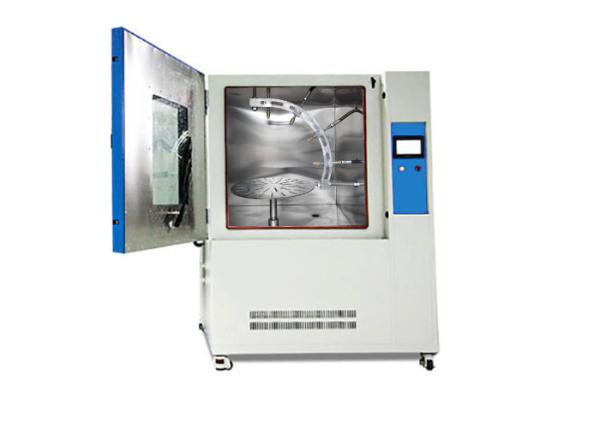

    The device is composed of a chassis, a water spray mechanism, a high-pressure high-temperature device, a turntable and an electrical control cabinet.

    1. The outer casing of the chamber is made of high-quality steel plate. The inner chamber and the turntable are all made of SUS304 stainless steel to ensure waterproof and anti-corrosion. The test chamber has its own water circulating system, and has a water collecting device inside. The test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.

    2. 4 standard nozzles are installed in the 0°, 30°, 60°, 90° position of the ring bracket.


    Jet Schematic Diagram


    3. The built-in water heating thermostat device ensures that the test water temperature meets the standard requirements. The high-pressure water is supplied by the high-pressure water pump through the frequency conversion, and the water jetting flow can be preset on the touch screen.


    High Temperature and High Pressure Water Pump (Imported from Italy)


    4. The test chamber is equipped with a turntable, the turntable is caused to rotating by motor driving at a rotation speed of 1r/min, to make the enclosure is sprayed from all practicable directions.


    5. The water heating, constant temperature, water pressure, water flow, water spray time, cycle program process and the turntable rotation action are controlled by the electrical control cabinet.


    Technical Parameters:


    Control & OperationPLC and touch screen intelligent control system
    Chammber Size

    Inner size: WDH=1000×1000mm×1000mm

    Outer size: WDH=1500×1200mm×1900mm

    Fan Jet NozzlesManufactured according to IEC 60529 figure 7, or can be customized
    Water Jett Pressure8000-10000Kpa
    Water Jet Flow

    14-16L/min

    Equiped with high temperature and high pressure electronic flowmeter


    Water Jet Angle0°, 30°, 60°, 90°
    Test Duration30s per position
    Overall Test Time0-99H59M59S, can be preset
    Test Water Temperature80±5°C
    Distance between Nozzle and Sample

    a) for small enclosures (largest dimension less than 250 mm): R125±25mm

    b)for large enclosures (largest dimension greater or equal to 250 mm): R175±25mm

    Impact ForceThe set-up for measuring the impact force of the water jet is according to IEC 60529 figure 10
    TurntableDiameter: Φ600mm, rotation speed: 1-10r/min, bearing capacity:≤ 50kgs
    Power Load to SampleOptional, provide test socket, AC220V
    Water Circulation SystemThe test is processed in the chamber, the equipment has a bilt-in water tank, the water can be recycled. And the inner chamber has a water collecting device, the test water is automatically collected into the water storage tank through the chassis. The water inlet can be automatically controlled through the float valve in the water tank, the system can give out high and low water level alarm detection alarms, which can effectively prevent the pump from being damaged due to dry water shortage.
    Safety ProtectionPhase sequence protection, leakage protection, short circuit protection, water shortage protection, abnormal protection.
