IEC 62196 Vehicle Testing Equipment 5000N Drive Over Test For Plug / EV Connector

Product information:

The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground. It is required by IEC 62196-1:2022 clause 33, IEC 62752:2016 clause 9.34, etc.

Test principle:

Accessories wired with the minimum size cable of a type recommended by the manufacturer shall be placed on a concrete floor in any normal position of rest. A crushing force of (5000±250) N or (11000±550) N shall be applied by a conventional automotive tire, P225/75R15 or an equivalent tire suitable for the load, mounted on a steel rim and inflated to a pressure of (2.2±0.1) bar. The wheel is to be rolled over the vehicle connector or plug at a speed of (8±2) km/h. The accessory is to be oriented in a natural resting position before applying the force in a different direction for each sample. The accessory under test shall be held or blocked in a fixed position so that it does not move substantially during the application of the applied force. In no case is the force to be applied to the projecting pins.

Applied standard & clauses:

IEC 62196-1: 2022 clause 33.

IEC 62752:2016 clause 9.34

Technical Advantages:

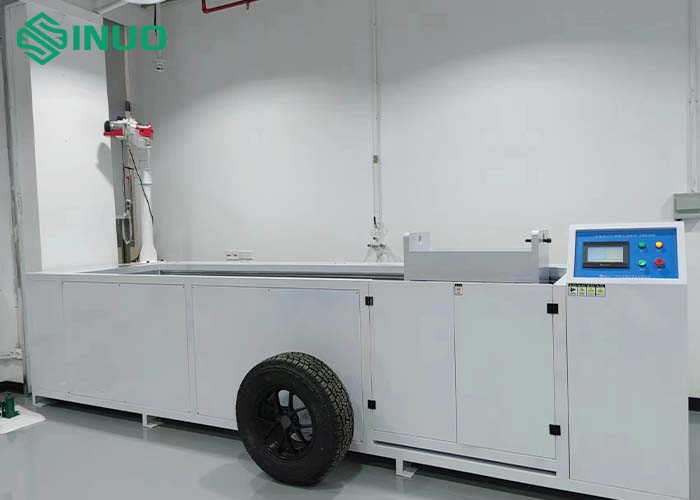

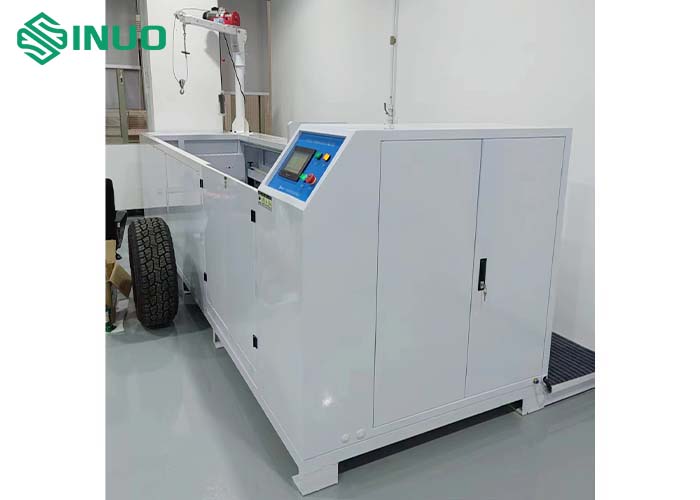

The whole equipment adopts cold-rolled steel plate protection chassis structure design, the surface of the chassis body is treated with Teflon paint, the bottom plate of the chassis is covered with simulated concrete floor, and the rolling mechanism can simulate the automotive tire to slide up and down freely after rolling over the specimen, vehicle connector / plug and its function box bears the same crushing force and is equipped with limited protection. The other set of driving device drives the rolling mechanism to realize the front and rear rolling action. The main components are made of stainless steel and aluminum. (Make sure the tire is crushed under normal rolling conditions).

Technical Parameters:
