    Motorcycle Lead Acid Battery Testing Equipment Cell Charge Discharge Capacity Test 20V 50A

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNBT4004FA-50A
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 10 Sets Per Month
    Delivery Time : 1 Month
    • Product Details
    • Company Profile

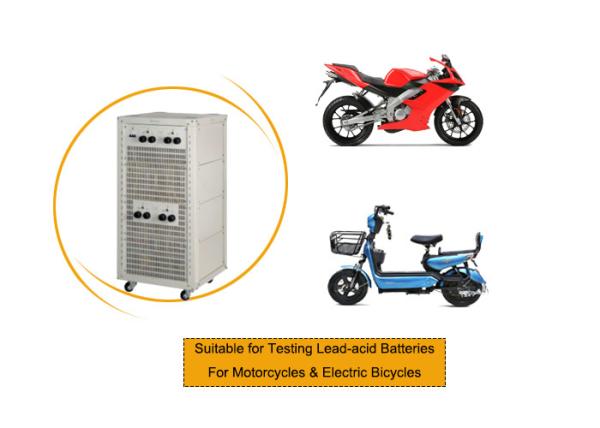

    Motorcycle Lead Acid Battery Testing Equipment Cell Charge Discharge Capacity Test 20V 50A

    20V 50A Motorcycle Lead Acid Battery And Cell Charge Discharge Capacity Test Equipment

    Overview:
    This battery charge discharge testing equipment meets the requirements of battery and cell pulse charge and discharge test, DC internal resistance (DCIR) test, cycle life (Cycle Life) test, rate charge and discharge test. This testing equipment comes with unique software, which can run on computer to achieve romote control and minitor.
    This series of battery testing systems are widely used in various research institutions, universities and power battery manufacturers.
    Standards & Clauses:
    Conforms to IEC62133-1/-2:2017 clause 7.1, 7.2.1, 7.3.8, 7.3.9, IEC62133-1/-2:2012 clause8.1.1, 8.1.2, 8.2.1, 8.3.6, 8.3.7 IEC60086-4 clause 6.5.8 6.5.9 IEC60622, IEC60623, IEC 60086-1, IEC61951, IEC61960
    Technical Parameters:

    Project index

    Parameter index

    Input PowerAC 380V±10%/50Hz (can be customized)
    ResolutionAD:16bit; DA:16bit
    Input Resistance≥1MΩ
    Input Power5570W
    Channel Control FeatureConstant current source and constant voltage source adopt independent double closed loop structure
    Channel Control ModeIndependent control
    VoltageVoltage Range Per Channel100mV-20V
    Minimum discharge voltage2.5V
    Accuracy± 0.1% of FS
    Stability± 0.1% of FS
    CurrentCurrent Range Per Channel250m A~50A
    Accuracy± 0.1% of FS
    Stability± 0.1% of FS
    PowerOutput Power Per Channel1000W
    Stability± 0.2% of FS
    TimeCurrent Response TimeTime of current rising to 20A is 20ms
    Step Time Range1s~365*24 hour, Time Form Support 00:00:00:000(h, min, s, ms)
    Data RecordingRecord ConditionTime△t: 100ms
    Voltage△U:40mV
    Current△I: 100mA
    Record Frequency10Hz
    ChargeCharge ModeConstant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging, constant current and constant voltage of the battery pack
    Cutoff ConditionVoltage, Current, Relative Time, Capacity, -ΔV
    DischargeDischarge ModeConstant current discharge, constant power discharge, constant resistance discharge
    Cutoff ConditionVoltage, Current, Relative Time, Capacity, -ΔV
    Pulse ModeCharge modeConstant current mode, Constant power mode
    Discharge modeConstant current mode, Constant power mode
    Min. pulse width500ms
    Number of pulseSingle pulse step supports 32 different pulses
    Continuous switching of charge and dischargeA pulsed step can achieve continuous switching from charge to discharge
    Cutoff conditionVoltage, relative time
    DCIR TestSupports custom point retrieval for DCR calculations
    CycleLoop Measure Range1~65535 times
    Max Steps Per Loop254
    Nested LoopWith nested loop function, max support 3 layers
    ProtectionSoftware Protection
    • Power-down Data Protection
    • Off-line Testing Function
    • Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time, Single cell difference
    • With anti-reverse connection function, IP Protection Grade: IP20
    Voltage and current detection samplingFour-wire connection
    Noise<85dB
    DatabaseMySQL Database
    A Means of Communication of Upper MachineTCP/IP Protocol
    Data OutputEXCEL, TXT, Diagram
    Communication InterfaceEthernet Port
    Main Channels No. Per Unit4
    Dimensions18U chamber, W*D*H:600*600*1000(mm)
    Fixture TypeTo be determined


    Equipment Working Environment:

    Project index

    Parameter index

    Working Temperature Range10℃ ~ 40℃
    Storage Temperature Range-10℃ ~ 50℃
    Working Environment Relative Humidity Range≤70% RH (No condensation)
    Storage Environment Relative Humidity Range≤80% RH (No condensation)
    Auxiliary channel voltage range (optional and customized)-5V~5V
    Auxiliary channel voltage accuracy
    (optional and customized)
    ±0.1%ofFS


    The number of channels, voltage range, current range and etc. can be customized according client's specific requirements and specimen. Please email or call to Sinuo for further assistance.
