    Energy Efficiency Grades Testing System For Household Microwave Ovens Induction Cookers

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN3312
    Certification : Calibration Certificate (Cost Additional)
    Price : Tailored
    Payment Terms : T/T
    Supply Ability : 1 Set Per Month
    Delivery Time : 2 Months
    • Product Details
    • Company Profile

    Energy Efficiency Grades Testing System For Household Microwave Ovens Induction Cookers


    Energy Efficiency Grades Testing System for Household Microwave Ovens Induction Cookers


    Overview:


    This testing laboratory provides test conditions for energy efficiency testing of induction cookers and microwave ovens, meets following standard requirements:

    GB 21456-2014 Minimum allowable values of the energy efficiency and energy efficiency grades for household induction cookers

    GB 24849-2010 Minimum allowable values of the energy efficiency and energy efficiency grades for household and similar microwave ovens


    Standards:


    Can be designed according to the following standards:

    ► GB 21456-2014

    ► GB 24849-2010

    ► Other international standards


    Types of UUT :


    Household induction cookers

    Household and similar microwave ovens

    Energy Efficiency Grades Testing System For Household Microwave Ovens Induction Cookers

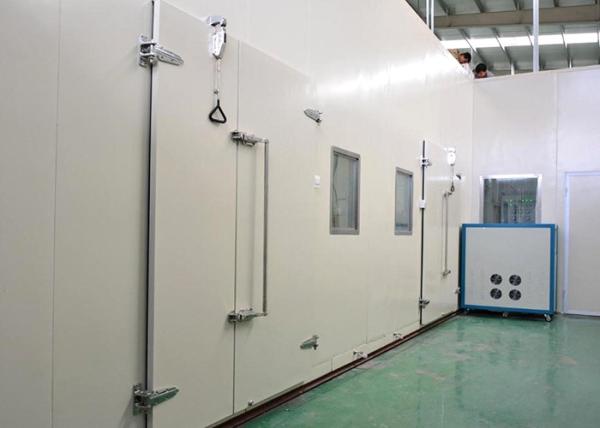

    Room Size:


    4.2M (Length) *2.75M (Width), The schematic layout is as follows:

    Note: The air-conditioning environment in the room is realized by the existing air-conditioning of User, and the structure of the house is completed by User.

    Energy Efficiency Grades Testing System For Household Microwave Ovens Induction Cookers


    Configuration List:


    No.:NameSpecificationQTYUnit
    Test Stations
    1Test benches

    Plates, with drawers and cabinets

    (a set of 3 stations)

    2SET
    2Test corners1M* 0.8M* 0.6M (H*L*W),20mm thickness plywood, surface coated with a matt black finish6PC
    Electrical Testing
    4ThermocoupleT type -20~150℃ Accuracy 0.1class40M
    5Isothermal terminalOmega12GROUP
    6Electrical parameter meter (single phase)WT310E6SET
    7Test water temperaturePt100, A class, 0~150℃6PC
    8Data collectorYokogawa GM10 (two channels per each station)2SET
    9Frequency Power15kVA1SET
    10Power box and terminal boxStainless steel6SET
    11Electrical parts and wire conduit, etc.Air switch, contactor, relay, power supply switch, etc.1SET
    12Test softwareThe latest version, matching hardware transformation, in line with the latest standards1SET
    13ComputerLenovo business machine1SET
    14UPSSantak 500VA1SET
    15Electronic scale(±0.1%), 5g resolution,20kg measuring range2SET
