    360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN996
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1


    360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1


    Standard and Clause For Luminaries Adjustment Test Equipment:


    This lighting adjustment test equipment matches the requirements of clause 4.14.3 of IEC 60598-1, mainly used for the lamp adjustment device’s torsion, and bending test of the table lamps, floor lamps and the lamps which are for professional use (such as a plotter lamps).


    Technical Parameters For Luminaries Adjustment Test Equipment:


    Power SupplyAC220V, 50HZ
    Bending /Rotation Angle0~360° (or 0~±180°) can be preset on touch screen
    Test Speed0 to 60 times / min, can be preset
    Test Cycles1~999999 can be preset
    Electrical ControlPLC & 7” touch screen
    Drive ModeStepper motor
    Operation ModeIntelligent touch screen control (7 inches)
    Rotation Center Height1200mm
    Platform Liftable Stroke0-1000mm, manually adjustable by rotating the hand wheel
    Maximum Radius of Gyration of the Rotating FixtureR500mm
    Test StationOne station

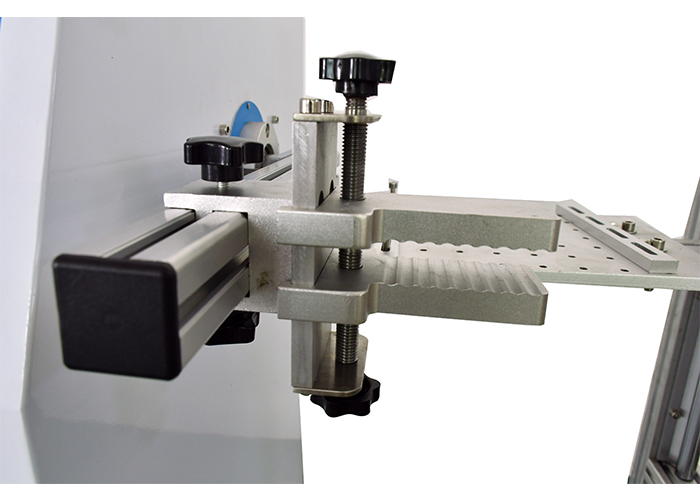

    Structure For Luminaries Adjustment Test Equipment:


    The test equipment is coming with integrated PLC & touch screen, motor drive bending mechanism, sample installation platform. The bending angles, test speed and test cycle can be set on touch screen. Once the test is completed or failed, the test equipment will give out signal.


    360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1
    360° Movement Luminaries Adjustment Test Equipment With PLC Control IEC 60598-1
