Brand Name : | Sinuo |
Model Number : | SN9926 |
Certification : | Calibration Certificate (Cost Additional) |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 20 Sets Per Month |
Delivery Time : | 30 Days |

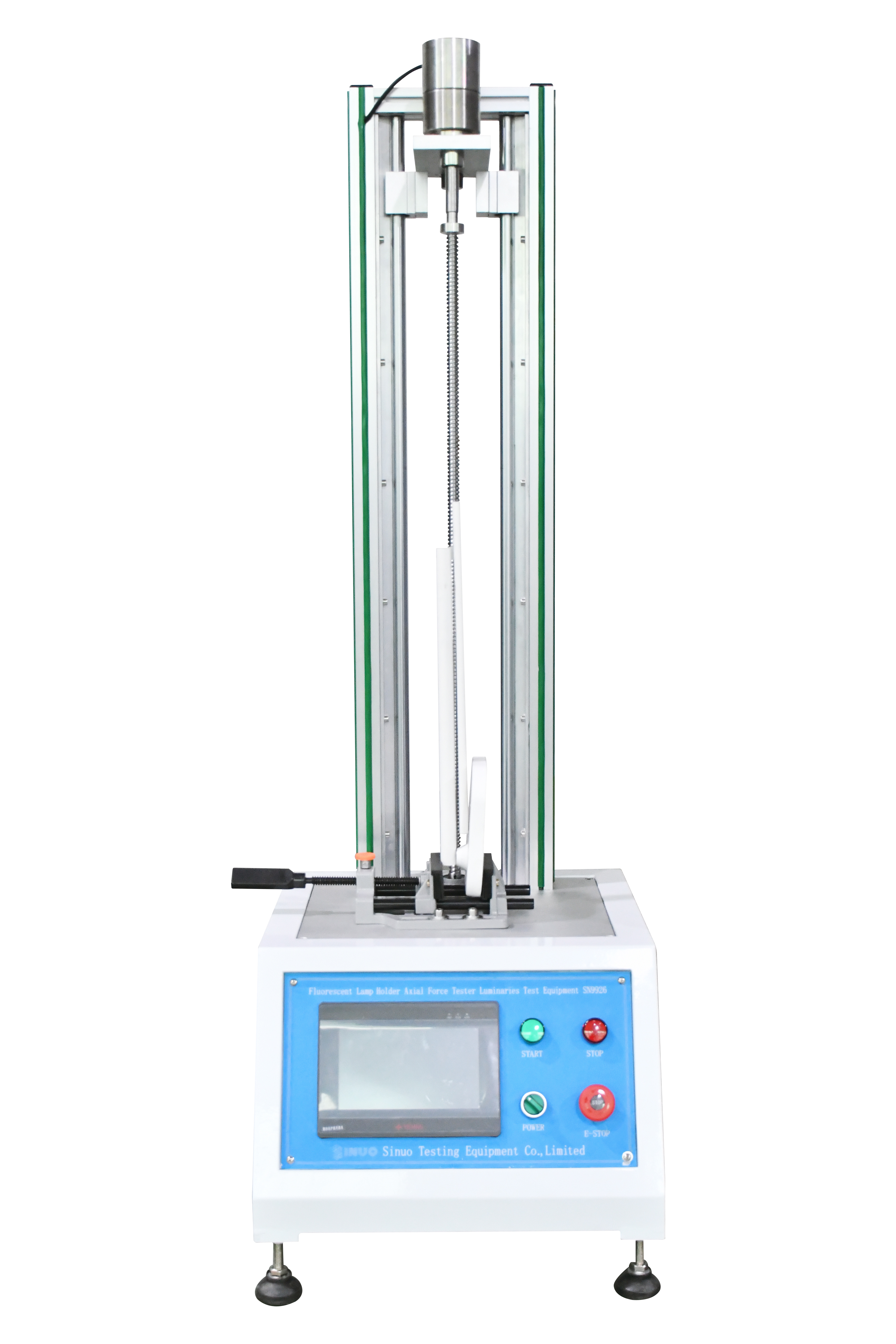

Luminaries Fluorescent Lamp Holder Axial Force Test Device IEC 60598-1
Applied Standards For Fluorescent Lamp Holder Axial Force Test Device:
The test equipment is designed and manufactured according to IEC60598-1 clause 4.4.4
Product Overview For Fluorescent Lamp Holder Axial Force Test Device:
It is applicable to axial pressure is applied to the G5 lamp holder of 15N, 30N axial pressure exerted on the G13 lamp holders, pressure holding time 1 minutes then quit, deformation detection lamp holder shall not exceed the amount of light foot length of 1 / 4.
Technical Parameters For Fluorescent Lamp Holder Axial Force Test Device:
Power | 220V 50Hz |
The axial force | 15N (bar weight), 30N (superimposed by a 15N vias weight onto the bar) |
Fixtures | V-type fixture, front and back adjustable,G5 7006-47C;G13 7006-60C |
Holding specimen height range | 0-250mm |
![]() |
