1. Ventilation and cooling device: The ventilation and cooling
system of the test chamber is automatically controlled by the
temperature controller, and the intelligent mechanical air-cooling
system is used to cool down in the chamber.
2. The control blackboard thermometer adopts wired transmission
technology, which effectively improves the control accuracy.
3. Using optical fiber transmission to measure the radiation
intensity of the xenon lamp, avoiding the problem of measurement
error caused by temperature.
4. A black panel thermometer BPT or black standard thermometer BST
is installed on the sample holder.
5. Device: In order to record the working time of each test, the
equipment is equipped with a timer on the operation panel, which
can control the equipment time, and the equipment will
automatically shut down when the timing ends.
8. Protection device: In order to make the xenon arc lamp work
normally without damage, the xenon lamp is automatically
extinguished when the door is opened, and the whole machine stops
working.
Structure and configuration for Parallel Intelligent Air-Cooled
Xenon Lamp Aging Test Chamber:
1. Integral structure: composed of test chamber,
heating//lighting/system/electrical control
2. Box material: A3 board with baking paint.
3. Cabinet liner: SUS316 stainless steel plate
4. Door: Silicone rubber tight seal.

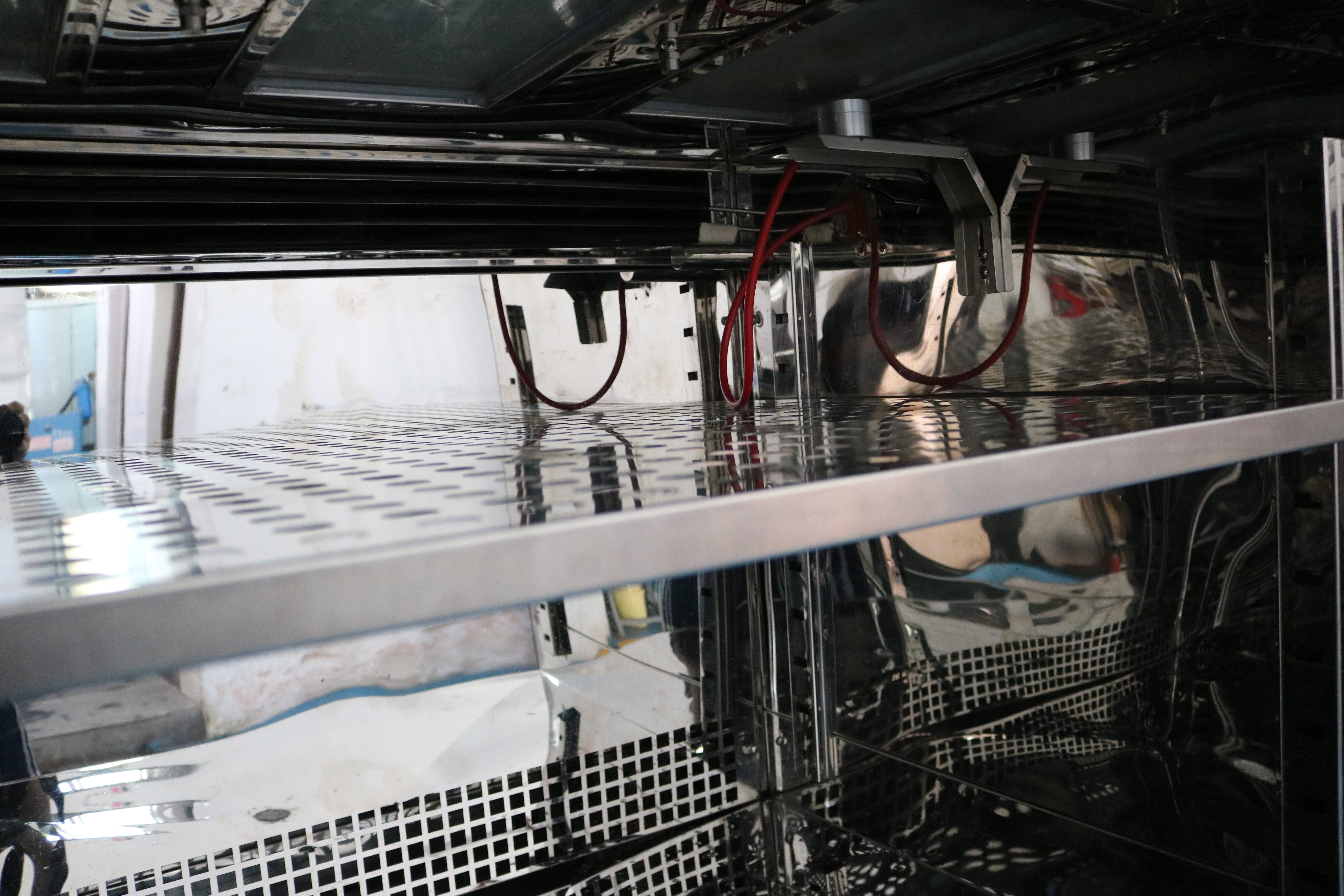

5. Sample rack: made of all stainless steel, the fixed position of
the sample is adjustable, and the standard stamping and forming
sample
6. Controller: self-developed touch screen + PLC programmable touch
screen controller "xenon lamp professional controller".
7. Convection: special motor for long axis
8. Device running timing controller
9. Black Panel Thermometer BPT or Black Standard Thermometer BST
10. Dedicated filters (light through glass windows or solarization
filters)
11. Irradiance meter: intelligent automatic irradiation intensity
compensation, automatic correction of irradiance
