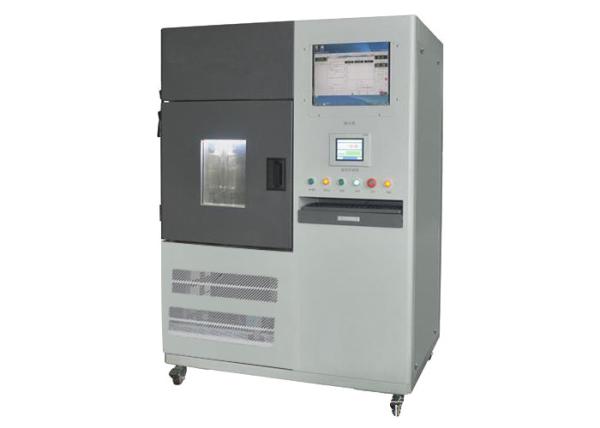

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester

Ask Lasest Price
Brand Name :	Sinuo
Model Number :	SN5513
Certification :	Calibration Certificate (Cost Additional)
Price :	Customized
Payment Terms :	T/T
Supply Ability :	5 Sets Per Month
Delivery Time :	1 Month

Add to Cart

Product Details
Company Profile

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester

Product information:

It conforms to IEC 62133-2: 2017 clause 7.3.9, JISC8714:2007 5.5, and etc.

Temperature Chamber Technical Parameters:

Temperature Range	-20℃ ～ +100℃(Controllable)
Resolution	0.01℃
Temperature Fluctuation	0.5℃
Temperature Uniformity	2.0℃
Max. Low Temperature	-5℃
Temperature Rising Rate	Ave.3℃/min(0℃ to100℃,Nonlinear No-load)
Temperature Cooling Rate	Ave.1℃/min(100℃to0℃,Nonlinear No-load)
Inner Chamber Dimension	W600 X H750 X D500MM
Inner Chamber Material	Mirror stainless steel with bottom reinforcement
External Chamber Dimension	W1500mmD1000mmH1750mm
External Chamber Material	Cold-Rolled Steel with paint-baking treatment (gray-white color)
Insulation Layer	The thermal isolation layer up to100mm, which employs fire-resistance high density PU foam material and the thermal isolation coefficient less than0.0212kcal/m∙hr.
Chamber Door	Single Door, Overall Size: 500×750mm
Observation Window	Single Door mountedwith3 layer vacuum glass viewing window with water-proof function (size: W430mm x H 580mm), the door framed signed with electrical heating function (automatic adjustment) to proof frost, dew, thus, provide the user a clear vision to observe entire testing process;
Testing Hole	On the left side of test chamber, attesting hole withitsdiameter50mm is opened with silicone rubber plug and Stainless steel cap/2pcs;
Sealing	Imported silicone glue is applied for door frame and test chamber sealing to provide a reliable sealing performance;
Internal Lighting	Viewing window with 9WPhilipis LED lamp with energy-saving and moisture and explosion proof function
Refrigeration System	1.AirCoolingMethod: Fully Enclosed single-stage compressor 2.Compressor: France Tecumseh Compressor1 set 3.Coolant: fluoride-free environmental coolant (USA DuPont) HFCR404A 4.Condenser: Air-cold highly efficient forced exchange fin type 5.Vaporizer: highly efficient multi-stage vaporizer with Hydrophilic membrane fin (thicker fin type) 6.Oil Separator: EMERSON 7.Vaporizer Pressure Regulator: Danfoss vaporizer pressure regulator (available to work in low temperature and High humidity condition without no frosting) 8.Solenoidvalve: Japan saginomiya or Danfoss;
Heating System	1.Heater: Naked-nichrome alloy electrical heater 2. Control Method: signal output from controller through the SSR to gain a high precise non-contact switching control
Control System	1.Control Method: Programmable high accurate micro-computer controller: chilled-mirror dew-point hygrometer To control temperature and humidity system. Anti-windup PID, BTC control method (thermal compensation function) +DDC intelligent cool flow control+ DEC intelligent electrical control (temperature test alternative testing program setting) 2.TEMI 880 color touchscreen controller to display temperature and humidity with EN menu. And 3.1’’LCD controller is compatible with computer control.

Internal Short Circuit Chamber Main Technical Parameters:

Max. Loading	200KG
Resolution	1/10000
Force Accuracy	≤0.5％
Force Magnification	7-stageautomatic shift
Displacement Resolution	1/1000
Displacement Accuracy	≤0.5％
Speed Range	0.01－20MM/S
Effective Range	0~ 150mm
Max. Testing Plane	300X300MM (Available to custom design to meet special test)
Voltage Acquisition Range	0~20V
Voltage Resolution	1mV
Voltage Acquisition Frequency	100Hz
Power Source	220V,60HZ

Servo Control System:

Standard Test Modular Function	Provide users with test ranges and requirement from GB, ASTM, DIN, JIS, BS etc.
Test Specimens Data	Provide all test data for all test specimens: once put, long available and available to modify equation to Improve test data and performance
Double Reporting Sheet	Fully Open Reporting Sheet in various format for selection (Test program can create EXCEL format)
Unit Shift	Length units (mm, cm, inch), force units (T, Kg, N, KN, g, lb.) can be displayed digitally and dynamic shift available;
Curve & Digraph Diversification	1.Designedwith Auto Scale function, diagraph can be displayed as optimal size and available for dynamic shift; 2.Curve Display: Load-displacement, load-time, displacement-time, stress-strain, load- 2 point extending diagraph as well as curve comparison;
Test Result	Available to output in EXCEL format;
Test End	Automatic/manual storage of test data, automatic calculation of the max. force, upper/lower yield, loop approach, progressive approach. Non-proportional extension, tensile strength, compression strength, arbitrary elongation strength, constant load elongation strength, elastic modulus, elongation percentage, stripping area maximum value, minimum value, mean value, net energy, flextural modulus, Breaking Point x% loading, Breaking load x% displacement, etc.
Language Shift	Chinese/English
Demo Function	Designed with historical test data demo function
Control Software Main interface

Measurement &Display, Record and output function:

Available to perform real-test for force of test specimen of battery shell and crush fixture as well as the pressure value and time-pressure curve digraph;

Real-Time Test crush fixture stepping speed& stopping speed data and time-stepping speed curve diagraph;

Real-time crush fixture displacement (relative to zero point)& displacement value and time-displacement curve diagraph

Available to calculate test specimen(battery) crush deformation and deformation ratio as well as time-deformation ratio curve diagraph;

Curve diagraphs as listed above, test operator can select complete data or partial data to record and display;

Battery temperature sample system,8battery temperature sample probe to acquire the temperature variants from different parts of batter and displayed with temperature-time curve;

Battery voltage sampling system to acquire the test process in battery voltage variation and the voltage at 0time, the machine shutdown;

Test operator can edit multi-step testing condition, and stored as the fix testing condition file that is easy to use and no need to repeat setting the multi-step test condition;

Test operator can select relating testing condition file and input information as operator, test specimen, test environment, test machine, to form respective test record and files

Respective test data can be stored in EXCEL format and can be checked, printed, outputted, historical test data and curve etc.

Machine Standard Configuration:

Temperature Chamber& Servo control system1set

Brand Computer: 19 inch LCD monitor,Yonah™2,dual core, 2GB DDR2,320GB /1set

Computer Rack/1set

Voltage Acquisition system 1set

Servo Control software

Block5X5MM 1pcs,10X10MM 1pcs(additional5x5 mm(+5Pcs) , 10x10 mm(+5Pcs) nitrile rubber)

Pressure Sensing System1set

Smoke exhaust system 1Set
