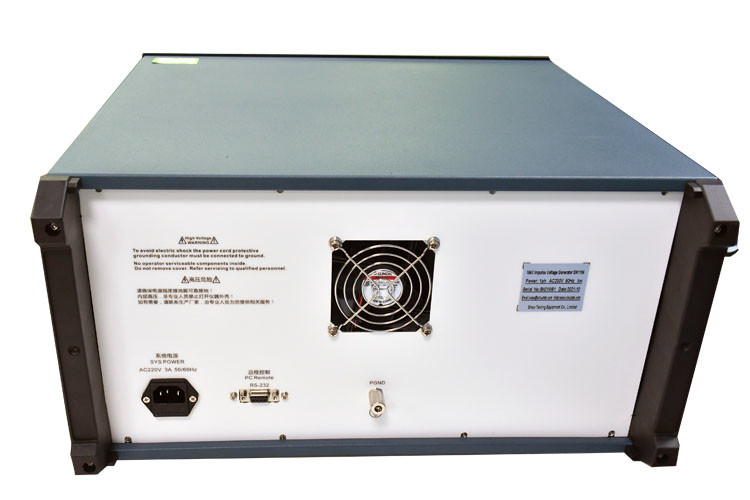

    IEC 62368-1 Annex D.1 Impulse Voltage Generator Test Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1104-2
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    IEC 62368-1 Annex D.1 Impulse Voltage Generator Test Equipment


    IEC 62368-1 Annex D.1 Impulse Voltage Generator Test Equipment


    Product Information:


    The impulse voltage generator conforms to the standards as follows.
    IEC 61180-1:2016 < High-voltage test techniques for low voltage equipment - Part 1: Definitions, test and procedure requirements, test equipment> clause 7.
    IEC60335-1:2016 clause 14.
    IEC60950-1:2013 clause1.5.7.2, 1.5.7.3,2.10.3.9,6.2.2.1,7.4.2,7.4.3, G5, Annex N.
    IEC60065:2014 clause13.3.4, Annex J.5, Annex K.

    IEC 62368-1 Annex D.1 Circuit 1


    Technical Parameters:


    1. Voltage integrated wave: 10/700us (when the output of the waveform generator is open).

    2. Integrated wave output impedance:40W±10%

    3. Integrated wave output voltage waveform peak value: 0.1~6kV

    4. Output polarity: positive, negative

    5. Impulse output mode: automatic.

    6. Impulse times: 1~9999 times

    7. Impulse interval time: 30~99 seconds (please note: the minimum interval time for 10/700ms wave is 30s)

    8. Dimensions: L500×W470×H260 mm

    9. Weight: about 30kg

    10. Output waveform definition

    11. Voltage wave: Front time:T1=1.67T=10ms±30%; Time to half value:T2=700ms±20%


    Important Safety Precautions


    The impulse voltage generator generates high-voltage pulses during operation. For safety, please read this manual and use this equipment correctly. Please pay attention to the following points during use:

    (1) Do not use this equipment when your hands are wet or the relative humidity exceeds 75%.

    (2) Because there is a high-voltage pulse applied to the terminal (impulse out), please confirm that the high-voltage power supply is disconnected when you want to change the wiring (HV.POW light is off) before proceeding.

    (3) The operation must strictly follow the instruction manual.

    (4) Although electric shocks are rarely encountered when operating this equipment, for safety, do not eat during operation to prevent accidental obstruction of eating caused by electric shocks.

    (5) This equipment uses a vacuum contactor to generate voltage pulses. To ensure the life of the vacuum switch, do not turn on the high voltage when the equipment is not being tested, especially do not continuously trigger the vacuum contactor under high pressure.

    (6) With high voltage inside, please do not disassemble or open the shell to work at will.

    (7) It contains high voltage, please do not disassemble or open the shell to work.


    Configuration List


    ItemNameQuantityUnitRemark
    Main deviceImpulse Voltage Generator1SET
    AccessoriesPower cord1PC
    Ground wire1PC2 m
    EUT output connection wire2PCS

    Gun type single head

    Black and red wires

    Terminals block1PC6P
    Coaxial cable1PCFor connecting to Oscilloscope
    DocumentUser’s manual1copy
    Warranty card1copy

    Certificate of Quality


    1Copy
