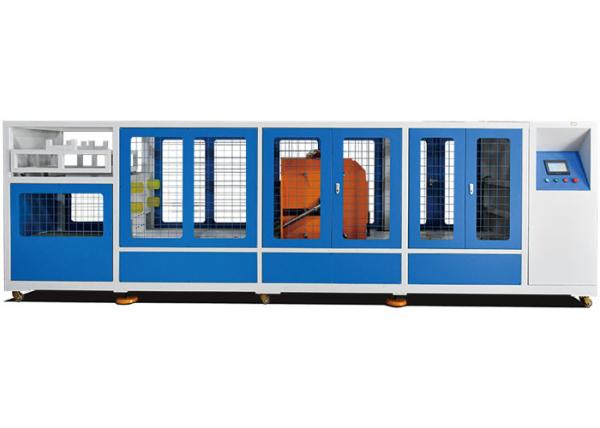

    IEC60601-1 Medical Electrical Equipment Impact Testing Apparatus

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2801
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 10 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    IEC60601-1 Medical Electrical Equipment Impact Testing Apparatus


    IEC60601-1 Medical Electrical Equipment Impact Testing Apparatus


    Product overview:

    This Impact Testing Apparatus is used for moving medical electrical equipment or moving parts of medical electrical equipment.

    It can evaluate whether the mechanical strength of medical electrical equipment, or moving parts of medical electrical equipment, is subject to unacceptable risk to the equipment when subjected to rough handling and movement. The motor-driven manipulator pushes the sample at a speed of 0.8m/s±0.1m/s to realize the upper step impact test, the lower step impact test and the door frame impact test on the water platform.


    The device includes an elongated work table (track), with a 40mm high step in the middle of the table, and a 40mm wide hardwood at the end; including a servo motor, a reducer and a guide rail drive mechanism. Equipment dimensions: about: 4000 × 1300 × 1850 (mm) W × D × H, equipment weight: 350kg


    Technical parameters:

    StationSingle station, can be customized
    Electrical control methodPLC intelligent integrated control, color man-machine touch interface operation
    Test size range

    The distance between casters is not more than 80cm, the width is not more than 80cm, and the height is not more than 100cm

    Drive modeServo motor + precision reducer drive
    Specimen clamping methodMechanical clamping
    Test items and action process

    1. Impact test on steps: move from left to right, impact the middle obstacle

    2. Down-step impact test: move from right to left and push down from the middle obstacle

    3. Door frame impact test: move from the middle to the right, impact the door frame obstacle

    Linear stroke0-3600mm, can be preset
    Test speed0-0.85m/s can be preset, can be preset (0.8±0.1m/s)
    Test count0~999999 times, can be preset
    Upper step impact test obstacle40mm steps, located in the middle of the platform, width 1000m
    Descending Step Impact Test Obstacles
    Door frame impact test obstacleWDH=40mm×40mm×1500mm, located at the right end
    Safety protectionFences all around
