    IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2801
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor


    IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor


    Product Information:

    This electrical hammer durability impact test equipment conforms to IEC 60745-2-1 clause 17 and IEC 60745-2-6 clause 17 and figure 103.

    This apparatus is applicable to durability test for hand held motor operated

    electric tools such as electric hammers, Electric drills and impact drills, which power no more than 2.5KW, to check whether electrical or mechanical hazard appears during the normal use of the electric hammer or drill.


    Technical Parameters:

    No.ItemSpecifications
    1Power supply220V/50Hz
    2Air source5~8 bar
    3Electrical controlPLC and 7 Inch Touch screen
    4Load voltage0-250V adjustable, current display
    5No-load rotation angle0°,90°,180°, can manual control clockwise or counter clockwise
    6No-load rotation rate0-360°/s, preset
    7Power on time0-999.9s, preset
    8Power off time0-999.9s, preset
    9Test time0-9999h, preset
    10Total test time0-9999h, preset
    11Interval time0-9999min, preset
    12Load pressure100,125,150,175,200,250,300,350,400N preset

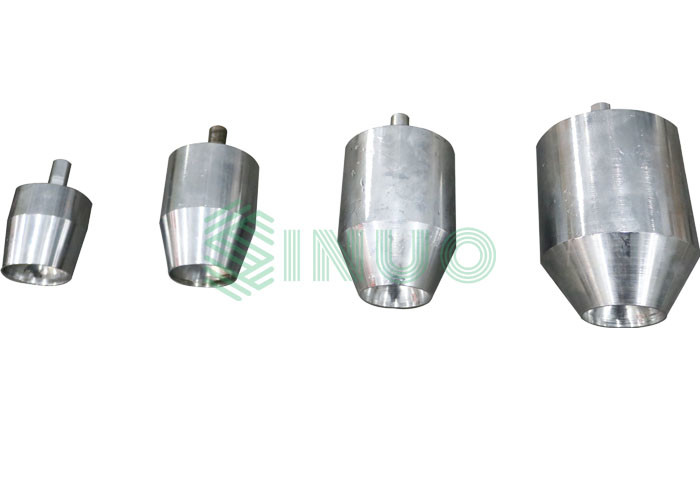

    13Impact head0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101
    14Steel ballΦ38mm
    15Steel plate100,140,180,220mm, use according to table 101
    16Rubber plateA set of 4, Matching with steel plate and steel base
    17Steel basebase weight 90kg, equipped with 9 pcs 30kg weights
    18Equipment dimension

    Control cabinet 600mm*400mm*750mm, aprox. 100kgs

    Test rack 400mm*400mm*2000mm, aprox. 450kgs

    Equipment Structure
    A. Electric control cabinet containing PLC, 7 Inch Touch screen, control panel, load (voltage 0-250V adjustable, voltage and current display);
    B. Mechanical device as shown in Figure 103, containing 360 kilograms of steel base, including the impact head, steel plate and fixture.

    Test Functions:

    1. No load test: All hammers, including hammers with drill only mode, are mounted vertically in a test apparatus as shown in Figure 103 and are operated at 1.1 times rated voltage for 12h, then operated at 0.9 times rated voltage for 12h. Each cycle comprising a period of operation of 30s and a rest period of 90s during which the tool remains switched off. During test, on each test voltage, hammer placed in three different directions (horizontal, vertical, vertical), each position of the tool running time of about 4 hours.

    2. Load test: All hammers, including hammers with drill only mode, are mounted vertically in a test apparatus as shown in Figure 103 and are operated at rated voltage or at the mean value of the rated voltage range, for four periods of 6h each, the interval between these periods being at least 30 min.

    During these tests, hammers are operated intermittently, each cycle comprising a period of operation of 30s and a rest period of 90s during which the tool remains switched off.

    During the tests, an axial force to ensure steady operation of the impact mechanism is applied to the hammer through a resilient medium.

    If the temperature rise of any part of the tool exceeds the temperature rise determined during the test of 12.1, forced cooling or rest periods are applied, the rest period being excluded from the specified operating time.
    IEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held MotorIEC 60745 Electric Hammer Durability Impact Test Equipment For Hand Held Motor
