    Clause Y.2 And Annex C Water Cooled Xenon Weathering Test Chamber IEC 62368-1


    IEC 62368-1 Clause Y.2 and Annex C Water-Cooled Xenon Weathering Test Chamber


    Product Information:

    This Water-Cooled Xenon Weathering Test Chamber is designed and manufactured according to the standard requirements of IEC 62368-1:2018 clause Y.2 and Annex C, etc. It is with imported Q-LAB water-cooled xenon-arc lamp, spectral irradiance 0.3W/m2~1.1 W/m2 (@340nm), together with other imported high quality components, the chamber’s quality is much higher than other versions of xenon weathering test chambers in the markets.


    Technical Parameters:

    Applied standardIEC 62368-1
    Applied clauseY.2 and Annex C
    Dimensions124cm×114cm×202cm (W×D×H)
    Exposure area6500cm2/ About 65 standard samples (140mm×70mm)
    Light source6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB)
    Light source lifeAbout 2000h (based on irradiance 0.51W/m2 @340nm)
    Irradiance display band340nm, 420nm, 300~400nm optional
    Irradiance range

    0.3W/m2~1.1 W/m2(@340nm)

    40 W/m2~120 W/m2(@300nm~400nm)

    Sample temperature

    Blackboard temperature: 40℃~110℃

    Black mark temperature:40℃~120℃

    Temperature in the chamber38℃~80℃
    Humidity in the chamber

    When illuminated: 30%RH~75%RH (related to temperature)

    In the dark: up to 100%RH

    Test Conditions

    Free combination of light, darkness and water spray

    Note: the water spray can be performed or not, if water spray is not used as per IEC 62368-1 Annex C.2.4, operator can set the spray time to be “0”.

    Supported test standards

    Conforms to SAE J2412, SAE J2527, ASTMG 155ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1, and etc.

    With 4 custom methods, users can set test parameters by themselves to meet most common standard requirements.

    Chamber overview:

    Comparison of xenon lamp spectrum and solar spectrum

    ApplicationsThis is a weatherproof test chamber that uses a long arc water-cooled xenon lamp as the light source. It can provide corresponding environmental simulation and accelerated aging test for scientific research, product development and quality control. Widely used in industries such as automotive materials, plastics, packaging, coatings, inks, dyes, stabilizers, textiles, electronics and electrical appliances.
    Features
    1. PLC controller of American GE company, automatic control, safe and reliable operation
    2. With touch screen man-machine interface, the operation is simple and powerful
    3. c) Real-time display and automatic control of sample rack temperature (BST, BPT), working room temperature (DB), relative humidity, light irradiance energy, test time
    4. Equipment status and equipment failure monitoring
    5. Setting of test parameters
    6. Information display function

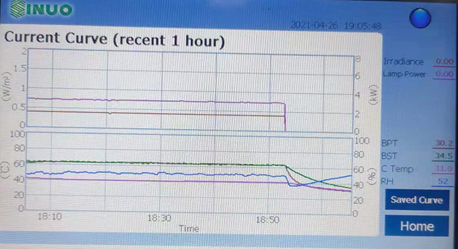

    Control system:

    HMI

    Comprehensive and easy-to-use human-machine interface (Will be in English)
