    IEC 62368-1 Clause Annex G.15 42Mpa Hydrostatic Pressure Test System

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1125-2.5MPA
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 62368-1 Clause Annex G.15 42Mpa Hydrostatic Pressure Test System


    IEC 62368-1 Clause Annex G.15 2.5Mpa Hydrostatic Pressure Test System


    Product Information:

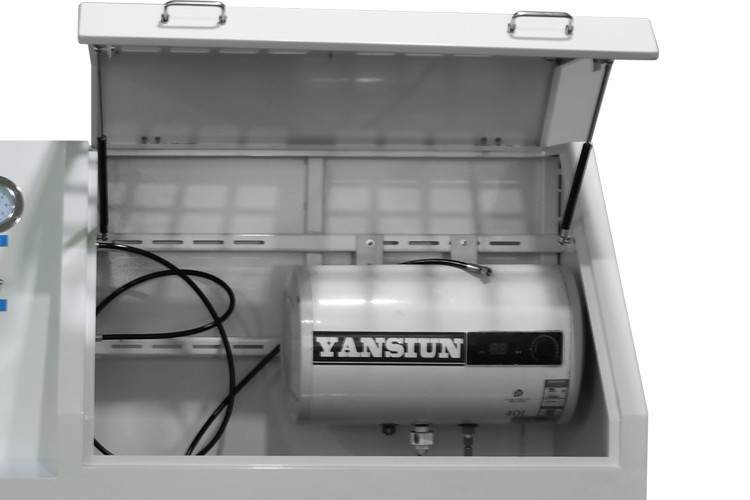

    This hydraulic pressure test apparatus is designed and manufactured according to the standard requirements of IEC 62368-1 clause Annex G.15, IEC 60335-1 clause 22.47, IEC 60335-2-5 cl.22.101, IEC 60335-2-7 cl.22.101, IEC 60335-2-35 22.103, IEC 60335-2-24 cl.22.7, IEC 60335-2-15:22.7, etc. The test samples including valves, water heaters, treated fabrics, etc., this test apparatus is used to test the blasting performance test and water sealing performance test, water pressure resistance and static pressure of test samples.
    The test system adopts touch computer control and pneumatic water pressure booster pump and its pressure control device, which has the following advantages, such as printing data, displaying pressure curve, test pressure setting, constant pressure time, pressure rise rate, etc. The advanced technology and design and the beautiful appearance makes it easy to operate.

    The used environment:

    Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH;

    Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation.


    Technical Parameters:
    Applied StandardIEC 62368-1
    Applied ClauseAnnex G.15
    Power supplySingle phase AC 220V, 50Hz or match client's local power supply requirements
    Operation interfaceTouch type computer
    Pressurized modeAir pressure
    Test pressure0.5-42MPa
    Hydraulic pressure control accuracy5%FS
    Water temperatureRT+5°C-60℃ controllable (accuracy ±1℃)
    Water tank volume30L
    Pressure apply or hold time0-999999s can be set

    Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH;

    Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation
