    Programmable Constant Humidity And Temperature Test Chamber 1540L IEC60068-2-2

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN881-1540L
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Programmable Constant Humidity And Temperature Test Chamber 1540L IEC60068-2-2


    IEC60068-2-2 Programmable Constant Humidity and Temperature Test Chamber 1540L


    Product Information:

    The Programmable Constant Humidity and Temperature Test Chamber is designed and manufactured according to the standard requirements of

    IEC60068-2-1, IEC60068-2-2, IEC60068-2-78, IEC60068-2-30 and etc.

    This temperature and humidity test chamber is suitable for determining the adaptability of electronic and electrical products, components and materials for use and storage under high and low temperature and certain humidity and heat conditions.


    Technical Parameters:

    StandardIEC60068-2-2
    Nominal content volume1540L
    Inner chamber sizeW (1100) mm *D (1000) mm* H (1400) mm
    External dimensionsApprox. W (2250) mm *D (1700) mm* H (1920) mm
    WeightApprox. 815KG
    Temperature range-50 ℃~+120℃
    Humidity range

    (20 ~ 98)% RH (refer to temperature and humidity controllable range chart, no active wet and heat load)

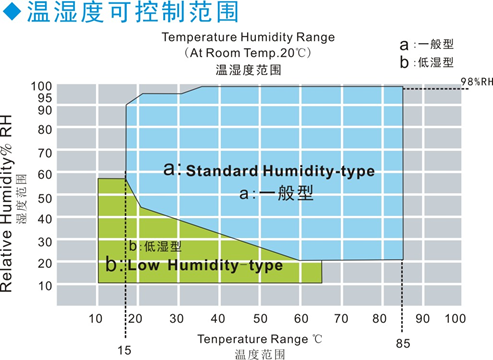

    Temperature and humidity controllable range chart

    Temperature fluctuation≤±0.5℃ (The temperature fluctuation is half of the difference between the measured maximum temperature and the minimum temperature at the center point)
    Temperature uniformity±2.0℃ (Temperature uniformity is the arithmetic mean of the difference between the highest and lowest temperature measured in each test)
    Heating time≥3℃/ min (non-linear under no load)
    Cooling time≥1℃-1.2℃ /min (non-linear under no load)
    Relative humidity error
    (Damp heat only)
    ±3%RH
    Temperature and humidity display accuracy0.01°C/0.1% RH

    Working noise


    Sound level≤85dB

    (Measured in a soundproof room with an ambient temperature of 25 ° C and low echo; using A weighting, the average value of 8 points is tested; each test point is 1 meter away from the noise source and 1 meter away from the ground)

    Material


    1. Outer wall material: Cold rolled steel plate, pickling and phosphating advanced powder baking paint
    2.Inner wall material: SUS304# stainless steel plate
    3. Chamber insulation material: rigid polyurethane foam + glass fiber
    Air duct partsCentrifugal fan; the air outlet can adjust the air volume, height and return air volume
    DoorDouble open door, each door is equipped with an observation window, lighting lamp, window/door frame anti-condensation electric heating device
    Observation windowEach door is with one conductive film explosion-proof tempered glass observation window on the door (with anti-condensation function) 330W×410H (mm)
    FanLong axis centrifugal fan
    Sample rackTwo built-in stainless steel adjustable movable tray racks
    ImpellerUse stainless steel impeller imported from Taiwan
    HeaterNickel-chromium alloy electric heater
    Refrigeration CompressorFrench Tecumseh compressor
    EvaporatorFin type evaporator
    Refrigerating methodMechanical compressor cascade
