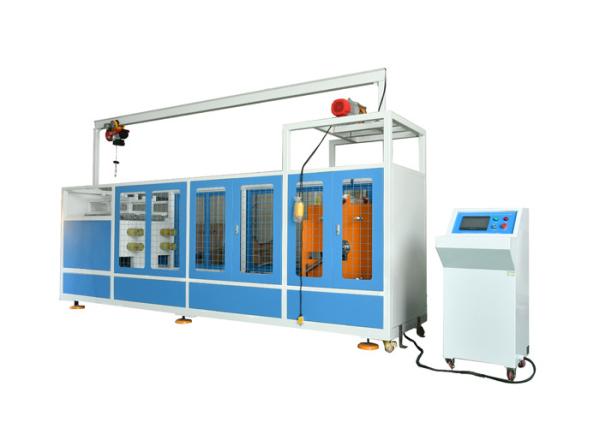

IEC 62196 Vehicle Drive Over Testing Apparatus For Charging Plug

Product information:
The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground.

Test principle:

Accessories wired with the minimum size cable of a type recommended by the manufacturer shall be placed on a concrete floor in any normal position of rest. A crushing force of (5000±250) N or (11000±550) N shall be applied by a conventional automotive tire, P225/75R15 or an equivalent tire suitable for the load, mounted on a steel rim and inflated to a pressure of (2.2±0.1) bar. The wheel is to be rolled over the vehicle connector or plug at a speed of (8±2) km/h. The accessory is to be oriented in a natural resting position before applying the force in a different direction for each sample. The accessory under test shall be held or blocked in a fixed position so that it does not move substantially during the application of the applied force. In no case is the force to be applied to the projecting pins.

Structure:

The equipment chassis is treated with a protective cover to ensure the safety of the test process; the bottom of the chassis is equipped with a shock-absorbing foot pad and a pulley structure for easy installation and disassembly. The rolling test is achieved by heavy-duty rails guiding, roller set sliding, high-power servo motor combined with the turbine reducer driving the spindle to reach the test speed. The sample fixing sliding device is equipped with a function box mounting jig, and the jig is universally adjustable (it can be adjusted up and down, left and right according to the size and shape of the specimen).The main unit consists of PLC control, touch screen, casters and connecting lines, easy movement and connection.

Technical parameters:
