    IEC 61009-1 Residual Current Protector Device Action Characteristic Tester

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2502
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5 Sets Per Month
    Delivery Time : 1 Months
    • Product Details
    • Company Profile

    IEC 61009-1 Residual Current Protector Device Action Characteristic Tester


    IEC 61009-1 Residual Current Protector Device Action Characteristic Tester


    System overview:


    The test equipment conforms to the standard requirements of IEC 61009-1:2012, IEC 60898-1:2015, IEC 61008-1:2010, etc.

    It is used for automatic verification of the operating characteristics of small leakage circuit breakers, and verifies the safety performance of circuit breakers. The instrument takes ARM-7 high-speed processor as the core, equipped with high-speed true effective value A/D converter, DSS sinusoidal signal generator and power amplifier with mains tracking, the instrument automatically outputs current, and can perform action current, action time etc. test project.


    Features:


    ➢ 24-bit high-speed and high-precision true RMS AD conversion, accurate sampling of operating current and voltage

    ➢ High-speed processor to accurately sample the action time

    ➢ Support the standard Modbus-RTU communication protocol

    ➢ Support quick selection of operating current for conventional products and separate setting of operating current for unconventional products

    ➢ 32-bit embedded processor, high-speed processing a large amount of communication data

    ➢ RS232/485 full-rate asynchronous serial communication interface, the maximum baud rate can reach 115200bps

    ➢ Isolation protection for input and output signals, safe work

    ➢ Software and hardware watchdog WDT design to ensure system stability

    ➢ The configuration parameters are stored in the flash memory, which will not be lost when the power is off, and will be stored permanently

    ➢ Anti-jamming design of software and hardware, can adapt to the occasions with harsh electromagnetic environment


    Technical parameters:


    ModelSN2502
    Detection platformThe device is equipped with a set of three-phase leakage protection circuit breaker test interface. The leakage protection circuit breaker adopts manual wiring, and the detection station can be tested independently.
    Working Power ConsumptionMaximum 500W
    Current Voltage AccuracyClass 1; current resolution 0.1mA; voltage resolution 0.1V
    Current output rangeAC:5~2000mA
    Output Voltage0~250V
    Timing Accuracy5mS, resolution 1mS
    Type A phase selection0 degrees (2000mA), 90 degrees (2000mA), 135 degrees (30mA)
    IndicatorThe power switch of the device uses a self-locking switch with an indicator light, and the light on the switch lights up when the switch is turned on. There is a running indicator light on the equipment panel, and the indicator light is on when the equipment is running
    Dimension430mm×370mm×280mm
    WeightAbout 30 KG

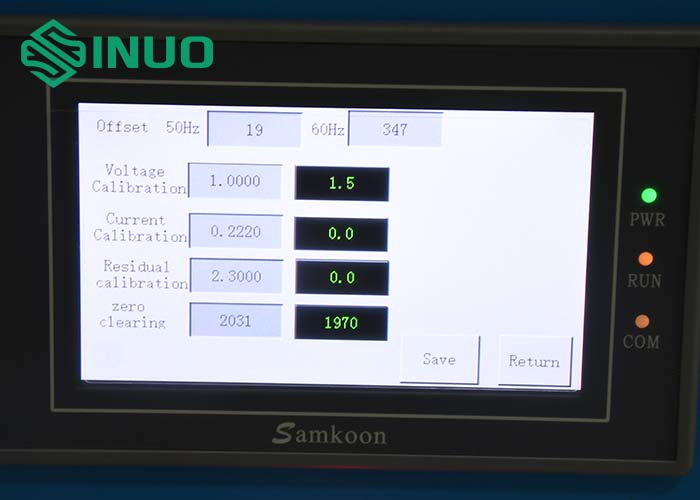

    Details Display:
