IEC 60884-1 Plug and Socket Die Steel Gauges Checking of Dimensions
Standards applied:
We can manufacture various of plug and socket gauegus according to
:
IEC60320-1:2018 ”Appliances couplers for household and and similar
general purposes- Part1:General requirements” clause 9.1
IEC60884-1:2013 ”Plugs and socket-outlets for household and similar
purposes- Part1:General requirements” clause 9.1
UL498-2016 ”Attachment Plugs and Receptacles”
DIN VDE 0620-1:2010 ”Plugs and socket-outlets for household and
similar purposes - Part 1: General requirements on fixed
socket-outlets”
BS1363-1-2012 ”13A plugs,socket-outlets,adaptors and connection
units Part1:Specification for rewirable and non-rewirable 13A fused
plugs”
AS/NZS 3112-2011 ”Approval and test specification – Plugs and
socket-outlets”
SANS 164-1:2016 ”SOUTH AFRICAN NATIONAL STANDARD Plug and
socket-outlet systems for household and similar purposes for use in
South Africa Part1:Coventional system,16A 250V a.c”
SANS 164-2:2012 ”SOUTH AFRICAN NATIONAL STANDARD Plug and
socket-outlet systems for household and similar purposes for use in
South Africa Part2:IEC system,16A 250V a.c”
SANS 164-3:2013 ”SOUTH AFRICAN NATIONAL STANDARD Plug and
socket-outlet systems for household and similar purposes for use in
South Africa Part2:Coventional system,6A 250V a.c”
SANS 164-4:2017 ”SOUTH AFRICAN NATIONAL STANDARD Plug and
socket-outlet systems for household and similar purposes for use in
South Africa Part2:Dedicated system,16A 250V a.c”
GOST 7396.1-89 (IEC83-75) ”PLUGS AND SOCKET-OUTLETS FOR DOMESTIC
AND ANALOGOUS GENERAL USE-KEY DIMENSIONS” , Group C
Samples and Restrictions:
Various plugs and sockets
Application:
Checking dimensions of plugs and sockets
Test Principle:
Check the shapes and sizes of the plugs and sockets by The gauges,
to verify the plugs and sockets are compliance with the standard
ranges
Structure:
Refer to the specific standards
Technical Parameters:
| Gauge Material | Imported industrial grade die steel or stainless steel |

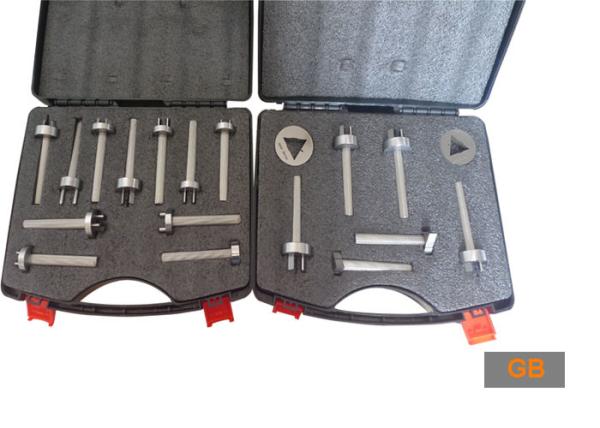

| Test Contents | GB1002 single-phase plug and socket gauges,figure 6- 18, total 19
pcs |
| GB1003 three-phase plug and socket set gauges, figure 5-9,total 24
pcs |
GB17465.1-2009(IEC60320-1:2007) coupler gauges: figure 2-9T, total 24 pcs; figure 22 anti-deformation test piece 2pcs with support, figure
27,total 6pcs |
| UL498-2012,Figure 9.1- Figure SD13.2,total 21 pcs |
DIN VDE 0620-1:2010 plug and socket gauges: Lehre1- Leher19b, total 35 pcs; Bild14 and Bild43, total 3 pcs |
| BS1363-1-2012 plug and socket gauges, figure 1-33, total 16 pcs |
AS/NZS 3112 plug and socket gauges: APPENDIX A- APPENDIX G, total 15 pcs; SH1412K and SH1413L, one piece each of them, total 2 pcs |
| SANS 164.1～161.4 South Africa plug and socket gauges, total 58 pcs |
| IS 1293 India plug and socket gauges, FIG. B-1~ FIG. B-3, total 6 pcs |
GOST 7396.1-89 (IEC83-75) Russia plug and socket gauges,FIG. 1~2,
total 2 pcs |
