    IEC60529 IPX8 Immersion Test Equipment For Electronic And Electrical Products

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4411
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

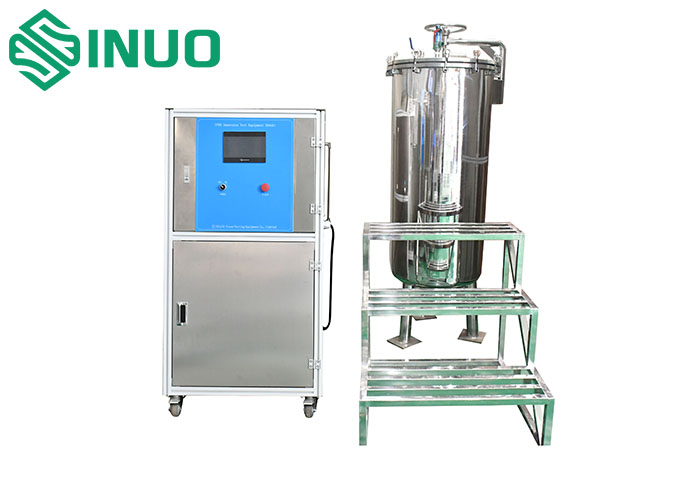

    IEC60529 IPX8 Immersion Test Equipment For Electronic And Electrical Products


    IEC60529 High Quality IPX7 Immersion Test Chamber For Factory Inspection Use


    Product information:

    The high pressure water tank is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8 as per IEC 60529:2013.

    The water tank is made of stainless steel, the equipment is controlled by PLC, test parameters can be set on the touch screen directly, water supply and pressure are achieved automatically.


    Technical Parameters:


    Item

    Specifications

    Equipment power supply

    Three phase AC380V 50Hz 4KW

    Small water pump

    Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw

    Protection class: IP55 Insulation class: F

    IP code test range

    IPX8 test

    IPX8 pressure tank

    Diameter and height

    φ600mm

    Full height of the tank is 1500mm (From upper flange point to lower flange point is 1500 mm), the height of tank body is 1200mm

    Pressure range

    0.01~0.50Mpa

    Tank material

    SUS304 stainless steel

    Pressurization method

    Water pressure pressurization, the current pressure value is collected from the PLC from time to time, and the inverter controls the pump speed and frequency to pressurize, and the pressure is constant

    Pressure sensor accuracy

    0.5 grade

    Limit pressure of safety valve protection

    0.55 MPa

    Pressure protection

    a. mechanical protection: spring-type safety relief valve

    b. program control: the pressure exceeds the upper limit value, the pump will stop working and immediately release the pressure

    Cover opening method

    Can be lifted by the screw rod and moved laterally, and can be fully opened for convenient sample placement

    Control

    PLC control

    Test time

    Set according to the test standard (range 1-9999 seconds), the unit is: second

    Stair

    Stainless steel stair
