    IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2101-G13
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 20 sets per month
    Delivery Time : 15 Days
    • Product Details
    • Company Profile

    IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges


    IEC 60061-3: 2007 G13 Double Ended Lamp Holder Go Gauge Measuring Gauges


    Product Information For G13 Double Ended Lamp Holder:


    The G13 Double-ended Lamp Holder Go Gauge is conforming to IEC 60061-3-2007, 7006-60C-3 Ⅰ and Ⅱ.

    To check a combined pair of flexible or inflexible lampholders G13 with regard to entry of lamp pins.

    It shall be possible to insert each gauge into a combined pair of lampholders. For the maximum forces to be applied see IEC Publication 400, Sub-clause 10.5.

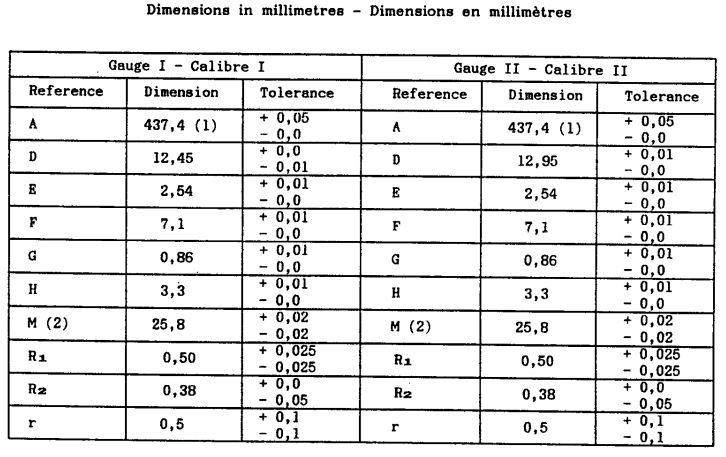

    Technical Parameters For G13 Double Ended Lamp Holder:


    (1) This valus is equal to dimension A max. of a 15W lamp. (See IEC Publication 81: "Tubular fluorescent lamps for general lighting service".)
    (2) Lampholders intended for lamps having a nominal diameter greater than 25 mm, shall in addition be checked with a simple measuring device (e.g. a plug) having a diameter in accordance with the required maximum cap shell diameter, shown as dimension A on sheet. 7004-51.
    Notice For VDE G13 Double Ended Lamp Holder:

    1. Please do not damage the appliance shape (such as scratching, bending, etc.).

    2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

    3. Add anti-rust oil regularly.
