    IEC 60529 Integrated IPX1~6 Waterproof Test System For Testing Electrical Product

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4417
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 5 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 60529 Integrated IPX1~6 Waterproof Test System For Testing Electrical Product


    IEC 60529 Integrated IPX1~6 Waterproof Test System For Testing Electrical Product

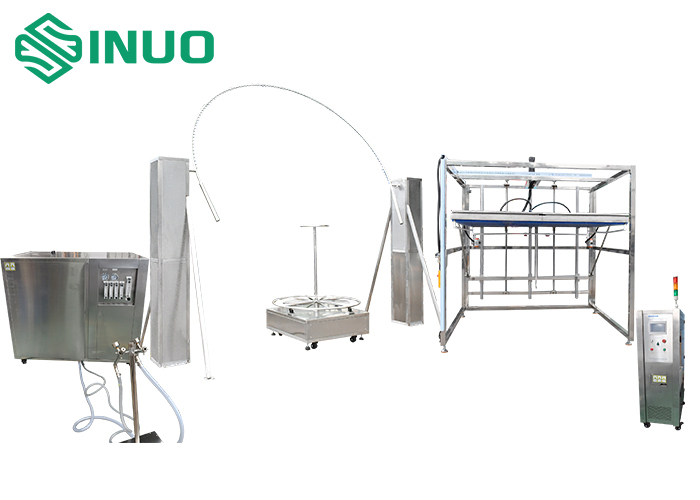

    Product Overview For Integrated IPX1~6 Waterproof Test System:


    The equipment is designed and manufactured according to requirements of IEC 60529 for IPX1 to IPX6 tests. It is used for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.


    Technical Parameters For Integrated IPX1~6 Waterproof Test System:


    The total size of the laboratory: 6.5×3.6×4.2m (width*depth*height) (room and drainage tank are prepared by the user)
    IP12

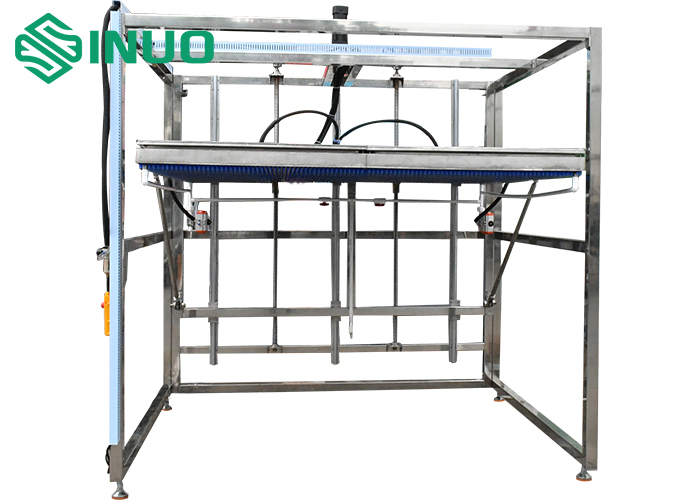

    Drip area size2000×2000*60mm (W*D*H)
    Maximum sample size1800*1800*500mm
    Distance between drip tank and sample200 mm (inside)
    Drip hole diameterφ0.4mm
    Spray aperture spacing20 mm
    Rainfall1+0.5mm/Min 3+0.5mm/Min
    TurntableIPX1 turntable is parallel, IPX2 turntable can be tilted 15°
    Air sourceThe buyer should prepare a air source of more than 5kg
    Rack materialCoated aluminum alloy profile
    IP34

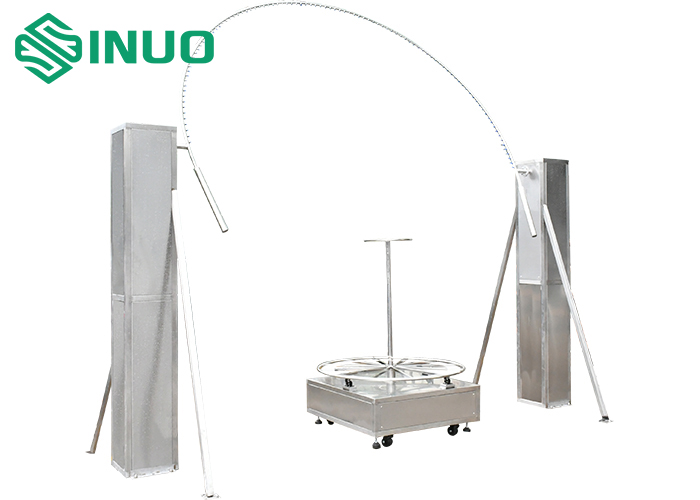

    Oscillating tube radius200, 400, 600, 800, 1000, 1200, 1400, 1600 (mm)
    Distance from nozzle to sample200mm (inside)
    Spray aperture spacing50mm
    Spray pipe oscillating angle range120° 320° (can be set)
    Nozzle angle120°(IP3) 180°(IP4)
    Oscillation speed30°/s oscillating speed: IP3 15 times/min; IP4 5 times/min
    Spray hole diameterφ0.4 (mm)
    Flow per spray hole0.07 L/min +5%
    Spray pressure80-150 (Kpa)
    Sprinkler SystemIP34: Determine the number of nozzles according to the number of oscillating pipes
    Water flowIP34 The water flow rate is determined by the number of oscillatinging nozzles
    IP56
    Number of nozzles2 pcs; 1 IPX5 nozzle and 1 IPX6 nozzle
    Tested surfaceThe side of the product is the tested surface
    Nozzle distance from sample2500~3000mm, the distance is controlled by the tester
    Nozzle inner diameterIPX5 (grade) φ6.3 mm, IPX6 (grade) φ12.5 mm
    Spray flowIPX5 (grade) 12.5±0.625(L/min), IPX6(grade) 100±5(L/min)
    Pipe diameterOne four-point and one-inch high-pressure hose
    Spray pressure30~200kpa (according to flow adjustment)
    Spray duration3, 10, 30, 9999min (adjustable)
    Runtime control1~9999min(adjustable)
    Water spray pressure gaugeWater spray pressure can be displayed
    Control systemSelf-developed touch screen control system
    Spray systemConsists of water pump, water pressure gauge, fixed nozzle bracket
    Nozzle materialSUS304 stainless steel pipe
    Water tank materialSUS304 stainless steel (professional brushed)
    Frame materialCoated aluminum alloy profile
    Control cabinet materialSUS304 stainless steel (professional brushed)

    Shared system


    Turntable speed: 1 ~ 7r/min adjustable
    Turntable load: 150 kg
    Turntable height adjustable: 300-600mm
    Turntable diameter: 200mm, 400mm, 1000mm
    Shared water tankWater tank size: 800×800×1000mm (W*D*H)
    Water level: transparent hose, equipped with stainless steel ruler to observe the water level, the height of the ruler is 1.0m, and the accuracy of the ruler is 1mm.
    Water tank control: stainless steel float, overflow hole
    The box body is reinforced with 304 stainless steel square tube
    Mobility: four universal casters to move freely, with brakes
    Bottom setting: the water tank is pumped and pressurized by the stainless-steel water pump inside the right control box, and then sent to the nozzle of the side spray pipe device. Nozzles spray water laterally onto the samples above the turntable. Then it is scattered into the water tank to form a water circulation system. Control components such as flowmeters, pressure gauges, and solenoid valves are designed at the pump outlet. The inner box is equipped with a waterproof turntable, and the speed is controlled on the panel.
