    IEC 60884-1 Leakage Tracking Test Equipment Flammability Test For Insulating Material

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN774
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60884-1 Leakage Tracking Test Equipment Flammability Test For Insulating Material


    IEC 60884-1 Leakage Tracking Test Equipment Flammability Test For Insulating Material


    Product Information For Leakage Tracking Test Equipment:


    The tester is designed and manufactured according to the standard requirements of IEC60112, and required by IEC 61851-1 clause 12.3, IEC 61851-23 clause 11.6, IEC 62196-1Ed.4CDV 2020 clause 28.4, 29.6, IEC60335-1 clause 29.2 and Annex N, IEC 60065:2014 clause 13.4, IEC60598-1, IEC 60884-1:2013 clause 28.2, UL746A and ASTM D3638-92 and etc.


    The leakage tracking tester adopts to advanced PLC control system and 7” color touch screen, it is suitable for the research, production and quality department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, information technology equipment. It is also suitable for the industry of insulating material, engineering plastics, electrical connector and accessories.


    Technical Parameters For Leakage Tracking Test Equipment:


    Parameter model

    SN774 (0.5m³)

    Working voltage

    220V/50Hz,1KVA

    Control

    Advanced PLC

    Display

    7-inch color touch screen

    Testing voltage

    0~600V adjustable, precision 1.5%

    Timing device

    9999X0.1S

    Electrode

    Platinum electrode and brass electrode each for a pair

    Electrode dimension

    (5±0.1)×(2±0.1)×(≥12),

    30°slant

    Electrode included angle and distance

    60°±5°, distance is (4±0.1㎜)

    Electrode pressure

    1.00N±0.05N(digital display is optional)

    The interval of dropping liquid

    30±5S, adjustable

    Dropping liquid height

    35±5mm

    Dropping liquid delay

    0.2S(solenoid valve opening time)

    Dropping liquid size

    45~50 drip/cm3

    Time-delay circuit

    2±0.1S(in 0.5A or larger current)

    Short-circuit pressure drop

    8% MAX

    Short-circuit current

    1±0.1A 1%

    Wind speed

    0.2m/s

    Environmental requirement

    0~40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas

    Equipment size & weight

    1100mm* 550mm* 1100mm, 180KGS

    Conforms to standard

    IEC60112, IEC 60598-1, IEC60695, IEC 60884-1, UL746A, ASTMD3638, etc.


    Working Principle For Leakage Tracking Test Equipment:


    The working principle of the leakage tracking test (tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm) and required time (30s) drops with the voltage between the platinum electrodes (2mm × 5mm) on the surface of solid insulating material. Thus, the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1).

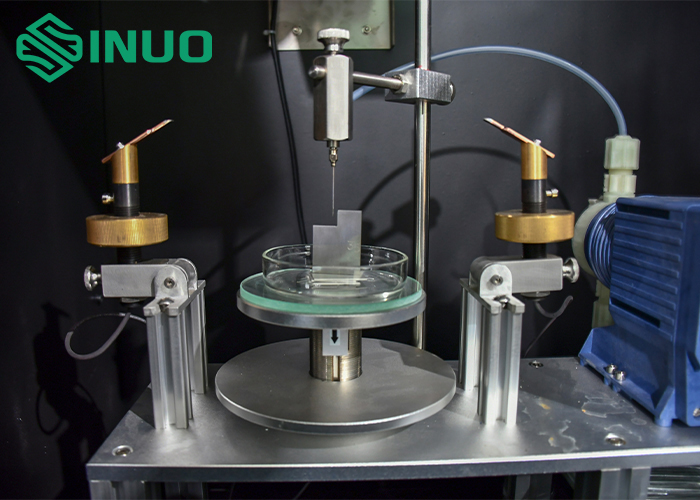

    A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.
