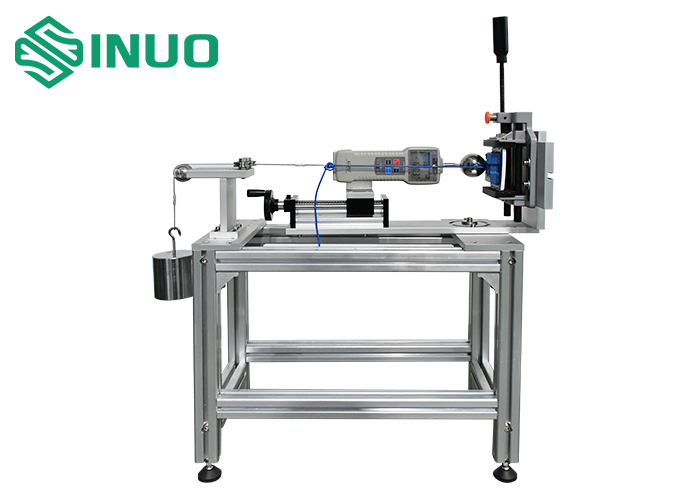

IEC 60884-1 Wire Connection Pull Test Device Power Socket Tester For Household

Product Information For Wire Connection Pull Test Device:

Standard: IEC60884-1:2006 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 13.4 and figure46

Sample: Household sockets without screw terminals

Test purpose: Used to detect the socket structure of the screwless terminal During or after the socket is installed on the installation box or wall, the connection and/or disconnection device of the screwless terminal cannot be triggered by the wire, verifying the safety performance of its structure.

Test principle: Use push rod connection test tool 1 (Ф50 steel ball) to apply 120N thrust to the connection and/or disconnection device. After the force value is reached, the equipment automatically controls the motor to drive the cam mechanism to drive the weight tray to release the weight, make it apply a pulling force of 30N to the wire, and automatically reset after reaching the test time of 1min.

Equipment Characteristics For Wire Connection Pull Test Device:

1. The equipment adopts a hand-operated slide structure to apply a 120N thrust to the connection and/or disconnection device of the sample, and uses a motor and an eccentric mechanism to apply a 30N pull to the wire

2. When the test force value is reached, the equipment automatically drives the motor to perform the tensile test

3. When the tensile test time is reached, the weight tray of the equipment is automatically reset, and the severity of the test will not be increased due to a longer time

4. Adopt the structure of double-slider guide rails, apply push force to the sample and pull force to the wire respectively, the positions are staggered, and the test tool 1 will not touch the wire

Technical Parameters For Wire Connection Pull Test Device:
